Micro Switch 2 Pin SMD Tactile Push Button

New 2 available
Only 2 left – grab it before it’s gone!
R63.16
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Returns
Warranty Type: Manufacturer https://acrobat.adobe.com/id/urn:aaid:sc:EU:60f589d9-954e-4367-b1cd-895555c7a9d4 Money-Back Guarantee: 7 Days: Money back in 7 days or replacement if available
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
BUT-0003
Bob Shop ID
648218361

Description:

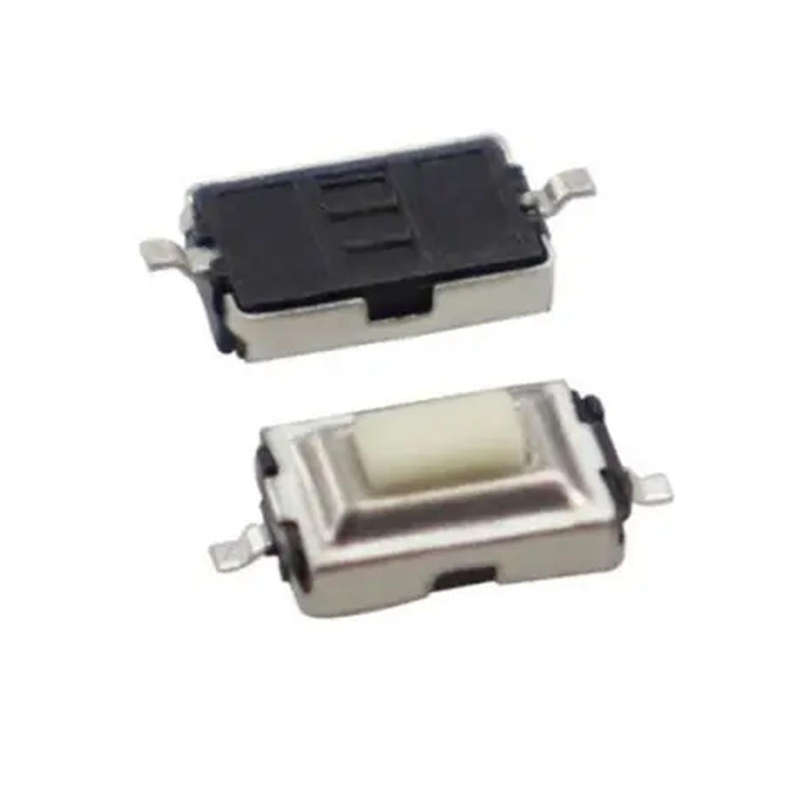

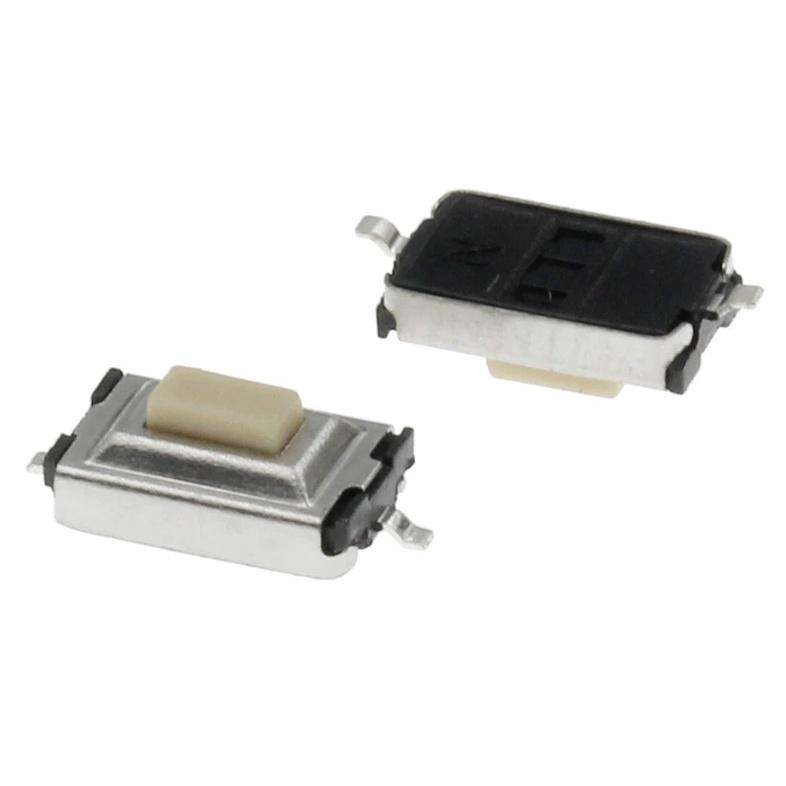

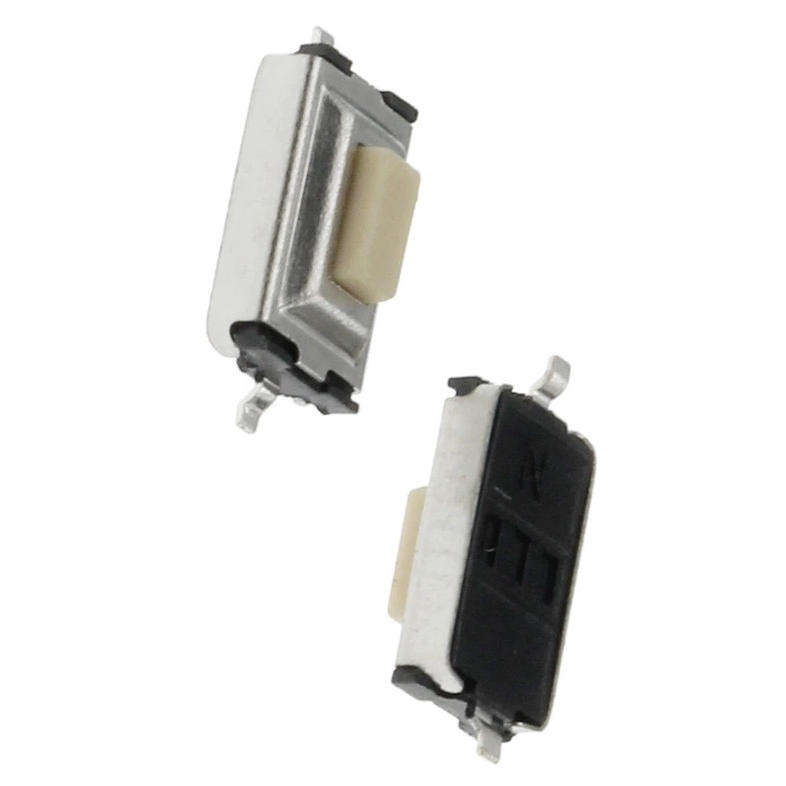

The Micro Switch 2 Pin SMD Tactile Push Button is a small, surface-mount momentary switch often used in embedded electronics.

SPST (Single Pole Single Throw) with momentary ON.

Pins: Two-pin SMD (usually open).

Operating voltage/current: DC 12V @ 50mA maximum.

Contact Resistance: < 100 m.

Activation Force: around 170g.

Travel distance: around 0.3 mm.



Specifications:



Rated Voltage & Current: 12V DC at 50mA.

Contact Resistance: 50 m.

Insulation Resistance: 100 M at 500V DC.

Dielectric Strength: 250V AC for 1 minute.

Electrical Life: Around 50,000 to 100,000 cycles depending on the model.

Operating Temperature: -30 C to +70 C.

Actuation Force: Typically ranges from 160gf to 250gf.

Button Travel Distance: Around 0.25mm to 0.3mm.

Add to cart
