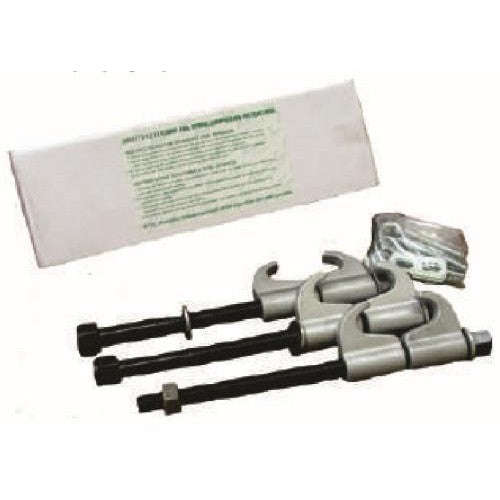

Micro-Tec External Coil Spring Compressor Set
External Coil Spring Compressor Set
Removes And Installs Coil Springs Where Removal Through The Center Of The Spring Is Not Possible
Services Both Straight &Amp; Curved Coil Springs
Includes U-Bolts &Amp; Wing Nuts
Maximum Diameter Spring That The Hooks Will Accommodate Is 0.75?.
Diameter Of The Rod: 5/8?
Instructions For Straight Coil Springs:
1. Install 3 Leg Assemblies Evenly Around The Spring. Turn Nuts Finger-Tight To Hold In Position.
2. Install One U-Bolt Near The Center Of Each Leg With Open End Pointing Away From The Spring. Place The Bar And Wing Nuts On The U-Bolt, Then Finger-Tighten The Wing Nuts
3. Tighten Each Leg Nut A Little At A Time To Compress Spring Gradually. Do Not Over-Compress.
4. To Release The Compressor, Loosen Each Leg Nut A Little At A Time.
Instructions For Curved Coil Springs:
1. With The Car Raised And Safely Supported, Place A Jack Under The Lower Control Arm. Raising The Jack Will Compress The Spring.
2. Install As Many Leg Assemblies And Safety U-Bolts As Possible (See #1 &Amp; #2 Above), Then Finger-Tighten The Leg Nuts.
3. Disconnect The Lower Control Arm Bolts, Then Slowly Lower The Jack Until The Spring Can Be Removed. The Curved Contour Will Remain.
4. To Install A New Coil Spring, Use One Or More Legs And U-Bolts To Produce The Necessary Curve.
Sku: M007012
