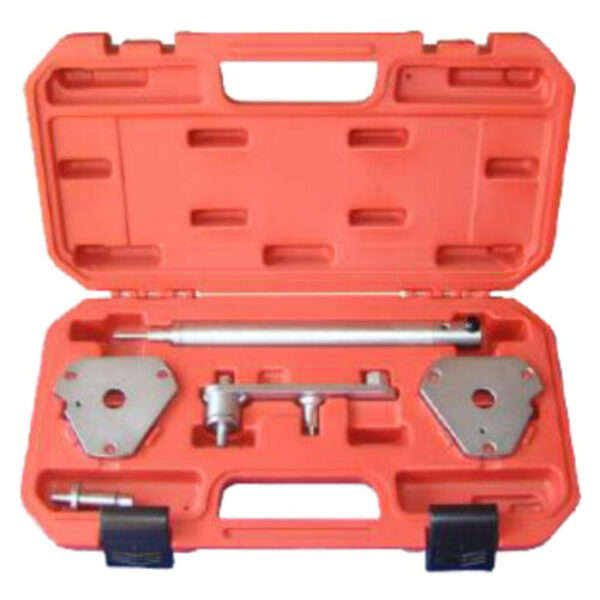

Timing Tool Set Fiat 1.6 16V

Kit includes Camshaft Setting Plates, which locate at the rear of the camshaft to 'lock' them in their timed positions, and special tensioner adjuster.

Note: TDC position on Fiat Twin Cam engines is established using TDC Positioning Tool, an associated tool, not included in the kit. It requires a suitable Dial Test Indicator. In addition, a Flywheel Holding Tool is required to 'lock' the crankshaft whilst releasing/tightening the crank pulley bolt. The crank pulley must be removed in order to remove the timing belt. The Flywheel Holding Tool used is dependent
upon model.

OEM Tools: 1.860.874.000, 1.860.876.000

Models:
Fiat: Brava/Bravo (1995-2002), Doblo/Cargo (2002-2006), Marea/Weekend (1996-2003),
Multipla (1999-2011), Palio Weekend (1997-2006), Siena (1997-2003), Stilo (2001-2008)
Lancia: Delta (1996-1999), Lybra (1999-2006)

Engines:
178B3.000, 182A4.00, 182A6.000 & 182B6.000.
