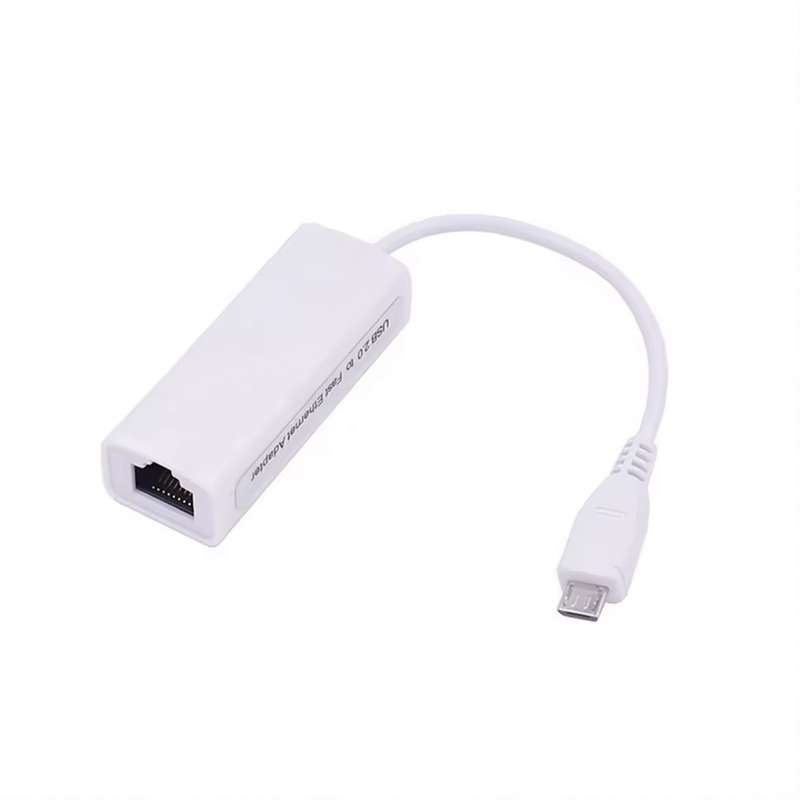

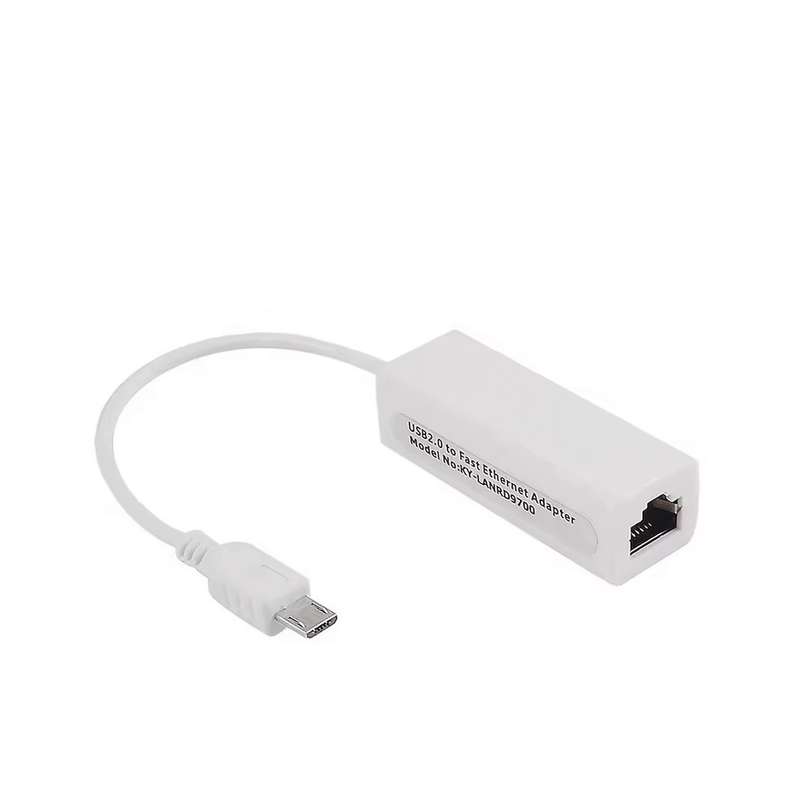

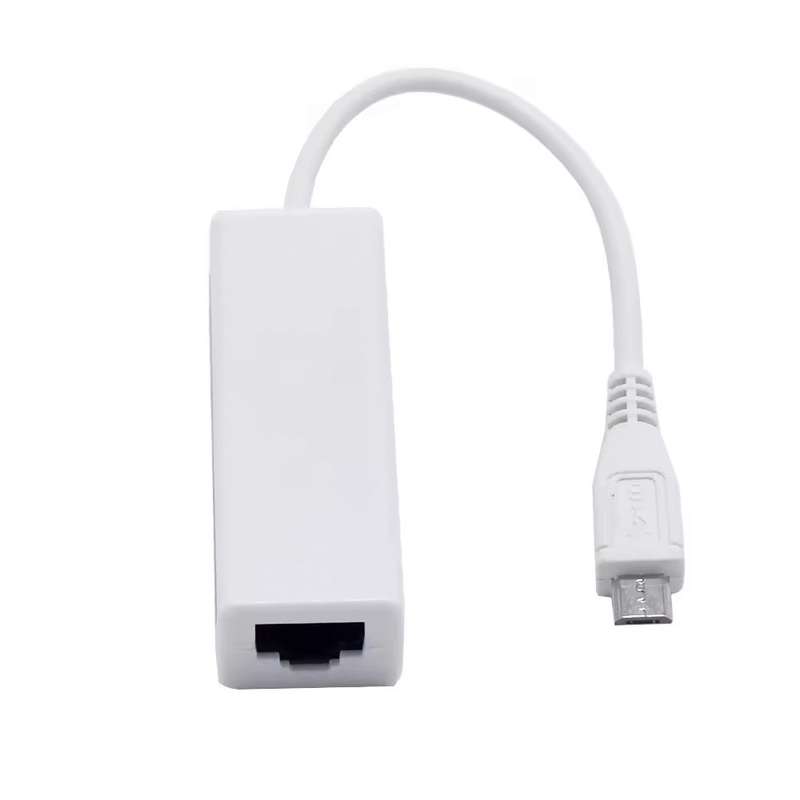

Micro USB 2.0 to Ethernet Adapter - Wired Network Connection for Your Device

The Micro USB 2.0 to Ethernet LAN RJ45 Network Adapter provides connectivity between Micro USB-enabled devices and Ethernet networks, enabling data transfer and communication.
This network Adapter is designed to be compatible with Micro USB 2.0 standards and supports full-speed and high-speed transmission.
It complies with IEEE 802.3u 100BASE-TX and IEEE 802.3 10BASE-T standards, ensuring compatibility with various network configurations.
The network Adapter supports 10/100 Mbps connection speeds and features automatic detection of full duplex/half duplex modes.
The device is compatible with Windows operating systems (98SE, 2000, ME, XP, Vista, win7, CE).

Features

Compatible with Micro USB 2.0 standards
Compliant with IEEE 802.3u 100BASE-TX and IEEE 802.3 10BASE-T standards
Supports Micro USB 2.0 full-speed and high-speed transmission
Supports 10/100 Mbps connection speeds with automatic detection of full duplex/half duplex
Supports full duplex IEEE802.3X flow control mode
Operating frequency: 48 MHz/125 MHz
Working temperature: -25°C to +70°C
Storage temperature: -40°C to +85°C
Relative humidity: 10% to 80% (non-condensing)
Operating voltage: 4.2-5.5 V
Dimensions: 68 x 21.3 x 19.2 mm
Power supply: 1 W
Working current: 180mA/5V

Specifications

Interface type: Micro USB 2.0
Support Agreement: IEEE802.3u Standard
Connection rate: 10M/100Mbps
Transmission rate: Up to 800Kbps (actual transmission rate depends on service provider conditions)

Package Contents

1 x Micro USB 2.0 to Ethernet LAN RJ45 Network Adapter
