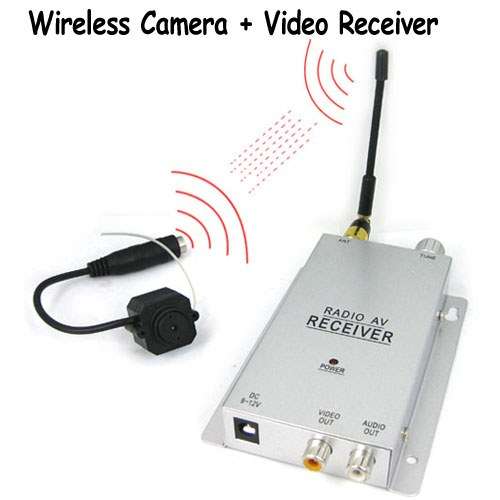

Micro Wireless Pinhole Color Camera + Video Receiver

Specifications:

Receiver Specifications:
Receiving Frequency: 0.9/1.2Ghz
Intermediate Frequency: 480Mhz
Video OUT
Power Source: 9V
Dimension: 120x81x20mm
Receiving Sensitivity: <-85dBm
Channel tune multiple cameras
Frequency Stabilization: +/-100Khz
Demodulation Mode: FM
Antenna: 50ohm SMA
Approved: CE / FCC
After sales service: 1 year warranty
Camera Specifications:
Image Device: 1/4 Inch CMOS
TV system: PAL/CCIR: 628 x 582, NTSC/EIA: 510 x 492
Minimum Illumination: 3 LUX
White Balance: Auto
S/N Ratio: >48dB
Horizontal Definition: 380 Lines
Angular Field of View: 38 deg
Operation Temperature: 5~ 35 deg C
Transmission Frequency: 1.2Ghz
Synchronization System: Internal
Backlight Compensation: Auto
Locked Frequencies
Recommended Max Range for Objects: 7~8 Meters
Transmission Range: 20 Meters
Power Adapter: DC 6V
Dimension: 20x20x22mm
Approved: CE / FCC

Accessories:

AV-out Cable
Antenna
Camera's Adapter
Receiver's AC / DC Adapter
