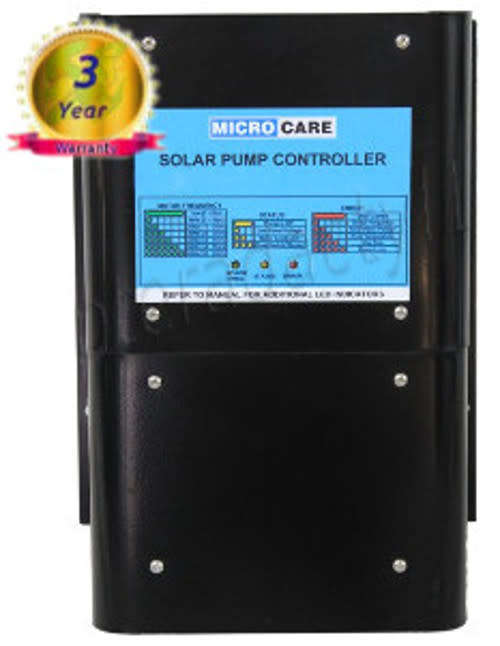

MICROCARE 230V Solar VSD Pump Controller with AC Input for 3ph and 1ph

220V Solar Pump VSD Controller with AC Input (230V)

(Max Output: Single-Phase 1.5kW / Three-Phase 3kW)

This Solar Pump Controller is suitable for 220V motors - viz pool pumps, borehole, mono and centrifugal pumps. For VSD motors MICROCARE will configure the software to suit your pump, so before ordering please use Q & A and supply me with your systems details (pump, PV panels etc.) so that I can check with them exactly what you require and ensure that this is the correct unit for your system.

Overview:

Designed to provide power to motors and pumps in remote areas and for systems to run independently off grid.

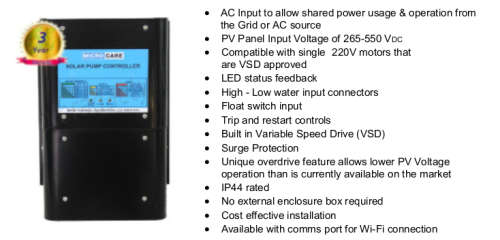

Features:

The unit is a Maximum Power Point Tracker (MPPT) facilitating a maximum power generation for efficient usage.

With its variable speed selectable control and flow switch input, the unit is able to offer a true Solar Pump Controller capable of producing high efficiency and maximum power output for both variable and constant speed pumps as programmed by Microcare to suit your pump.

The unique built in overdrive feature allows for a lower PV voltage operation.

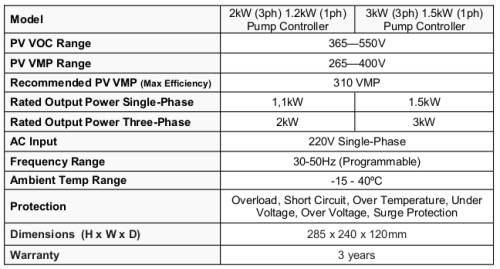

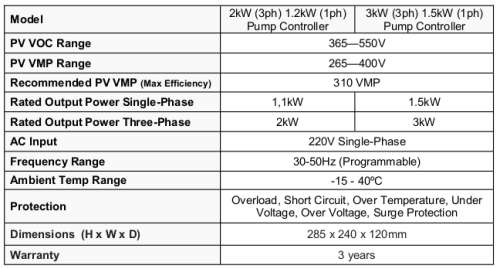

Supplied in two different sized models as per specs below:

Warranty: Only valid if unit is installed by a Microcare approved installer.

Please note that on single phase pumps it needs to be a single permanently connected capacitor motor.

                            Models with wi-fi comms port: Additional option -  please ask for price, use Q&A before ordering.

Before ordering use Q&A, please supply pump details so that I can make sure that this is the correct controller for your pump.

  Order Lead Time; Normally in stock at Microcare and orders take approx. 48 hours working days to process on receipt of your payment.

Should this item be out of stock and needs to be built it will take approx 5 - 10 working days before order will be ready for shipping.
