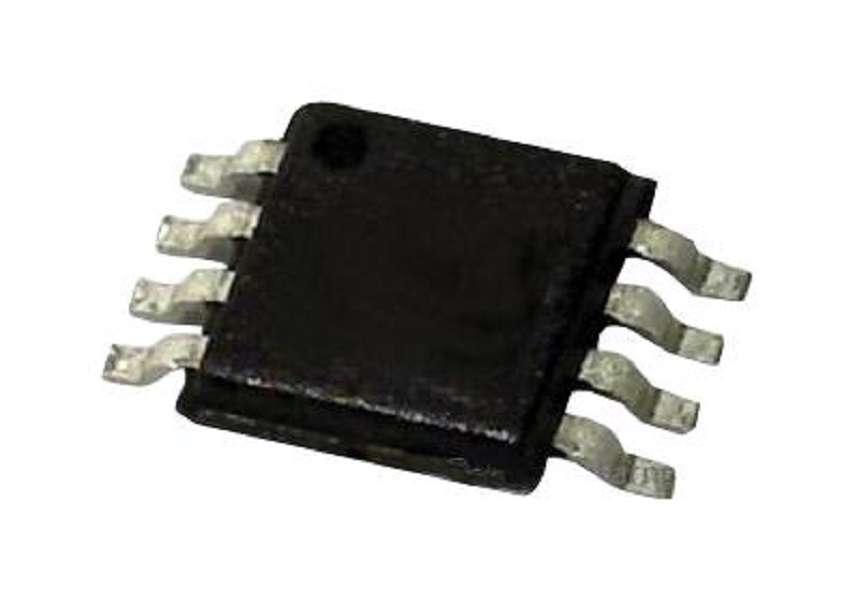

Microchip (24FC512-I/SM) Eeprom, 512 Kbit, 64K x 8bit, Serial I2C (2-Wire)

EEPROM, 512 Kbit, 64K x 8bit, Serial I2C (2-Wire), 1 MHz, SOIC, 8 PinsProduct OverviewThe 24FC512-I/SM is a 512kB I²C serial Electrically Erasable ProgrammableRead-Only Memory (EEPROM) capable of operation across a broad voltage range 1.7to 5.5V. It has been developed for advanced, low-power applications such aspersonal communications and data acquisition. This device also has a page writecapability of up to 128 bytes of data. This device is capable of both random andsequential reads up to the 512K boundary. Functional address lines allow up toeight devices on the same bus, for up to 4Mb address space.Low-power CMOS technology2-wire serial interface (I²C compatible)Cascadable up to eight devicesSchmitt trigger inputs for noise suppressionOutput slope control to eliminate ground bounce100 and 400kHz Clock compatibilityPage write time 5ms maximumSelf-timed erase/write cycle128byte Page write bufferHardware write-protectESD protection >4000VMore than 1million erase/write cyclesData retention >200 yearsApplicationsComputers & Computer Peripherals, Industrial, Communications & Networking,Consumer Electronics, AutomotiveProduct InformationIC Interface Type: I2CMemory Size: 512KbitEEPROM Memory Configuration: 64K x 8bitMemory Interface Type: Serial I2C (2-Wire)Clock Frequency: 1MHzMemory Case Style: SOICNo. of Pins: 8PinsSupply Voltage Min: 1.7VSupply Voltage Max: 5.5VOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: 512Kbit I2C Serial EEPROMMSL: MSL 1 - Unlimited
