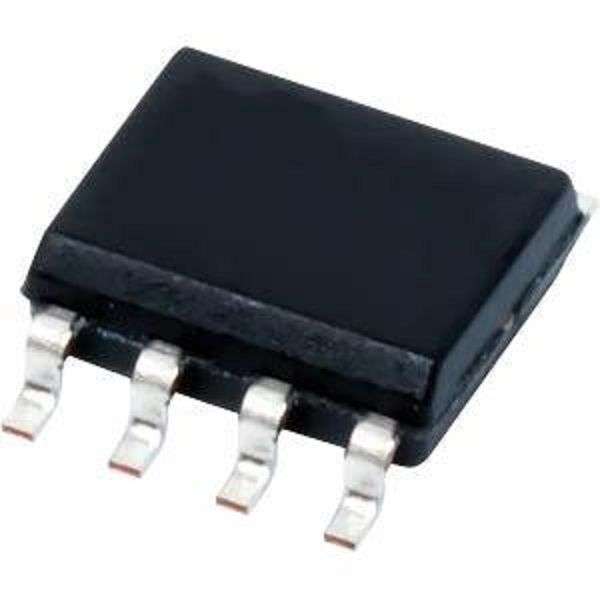

Microchip (24LC65-I/SM) Eeprom, Smart Serial™, 64 Kbit, 8K x 8bit

EEPROM, Smart Serial, 64 Kbit, 8K x 8bit, Serial I2C (2-Wire), 400 kHz, SOIC, 8PinsProduct OverviewThe 24LC65-I/SM is a 64kB I²C Smart serial Electrically Erasable ProgrammableRead-Only Memory (EEPROM) has been developed for advanced, low-powerapplications such as personal communications and provides the systems designerwith flexibility through the use of many new user-programmable features. The24XX65 offers a re-locatable 4kB block of ultra-high-endurance memory for datathose changes frequently. The remainder of the array or 60kB is rated at 1000000erase/write (E/W) cycles ensured. The 24XX65 features an input cache for fastwrite loads with a capacity of eight pages or 64 bytes. This device alsofeatures programmable security options for E/W protection of critical dataand/or code of up to fifteen 4K blocks. Functional address lines allow theconnection of up to eight 24XX65s on the same bus for up to 512kB contiguousEEPROM memory. Advanced CMOS technology makes this device ideal for low-powernonvolatile code and data applications.Industry standard 2-wire bus protocol I²C compatible2ms Typical write cycle time, byte or page64-byte input cache for fast write loadsSchmitt trigger, filtered inputs for noise suppressionOutput slope control to eliminate ground bounceSelf-timed erase and write cyclesPower-on/off data protection circuitryElectrostatic discharge protection >4000VData retention >200 yearsApplicationsComputers & Computer Peripherals, Industrial, Communications & Networking,Consumer Electronics, AutomotiveProduct InformationIC Interface Type: I2CMemory Size: 64KbitEEPROM Memory Configuration: 8K x 8bitMemory Interface Type: Serial I2C (2-Wire)Clock Frequency: 400kHzMemory Case Style: SOICNo. of Pins: 8PinsSupply Voltage Min: 2.5VSupply Voltage Max: 6VOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: 64Kbit I2C Serial EEPROMMSL: MSL 1 - Unlimited
