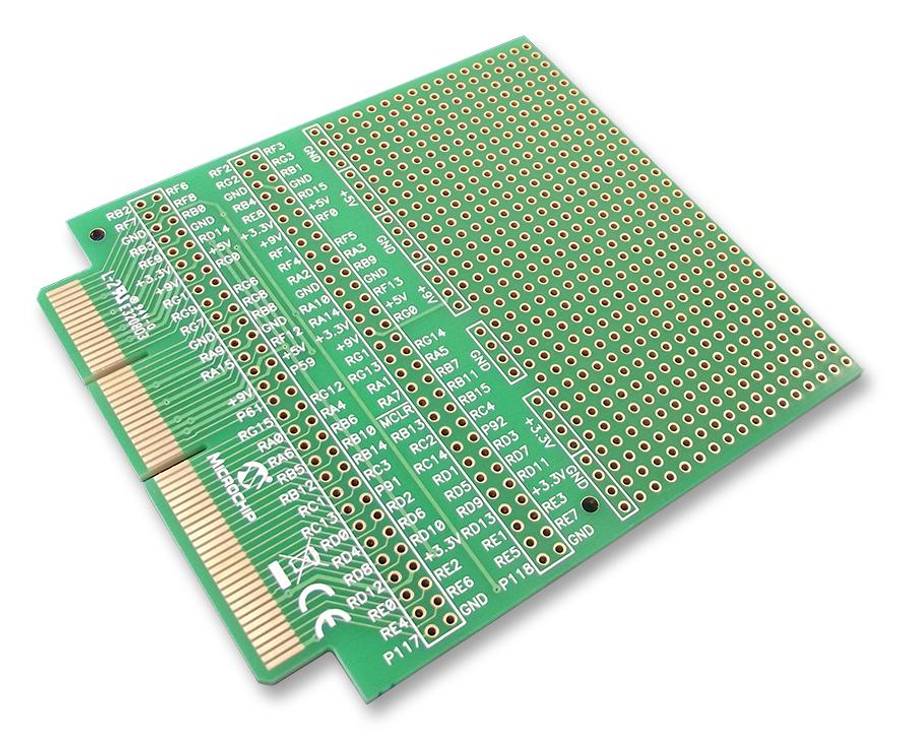

Microchip (AC164126) Prototype Boards, PICtail Plus

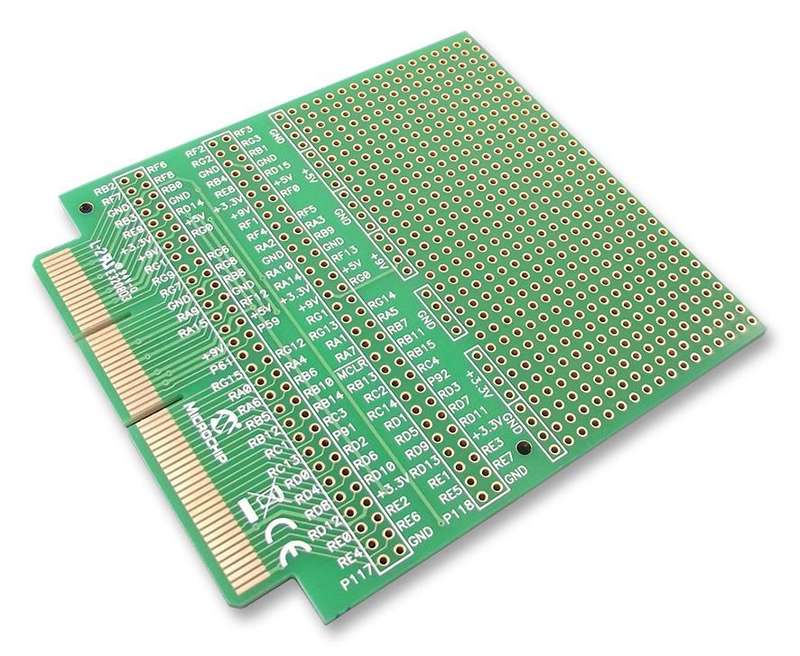

Product InformationSilicon Manufacturer: MicrochipCore Architecture: PIC, dsPICCore Sub-Architecture: PIC24, dsPIC33Silicon Core Number: -Silicon Family Name: -For Use With: Evaluation BoardsKit Contents: 3x Blank Prototype PICtail Plus Daughter BoardsProduct Range: -Product OverviewThe AC164126 is a Prototype PICtail Plus Daughter Board. The Prototype PICtailPlus Daughter Board allows the designer to breadboard their solution easily forevaluation on an explorer 16 evaluation board using PIC24 MCU or dsPIC33 DSC.This board is an 8cm x 8cm board with a card edge connection that allows it tobe plugged directly into the PICtail Plus expansion socket. The breadboard areaprovides access to all of the processor pins as well as a generous prototypingarea. The AC164126 contains three blank Prototype PICtail Plus daughter boards.8cm x 8cm board with a card edge connectionThe breadboard area provides access to all of the processor pinsThe AC164126 contains three blank prototype PICtail Plus daughter boards
