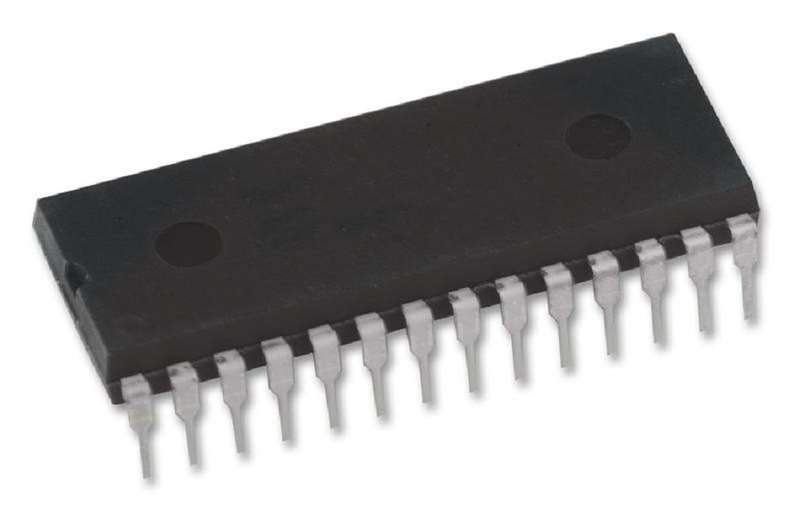

Microchip (ATMEGA8L-8PU) 8 Bit MCU, Low Power High Performance

8 Bit MCU, Low Power High Performance, AVR ATmega Family ATmega8 SeriesMicrocontrollers, 8 MHzProduct OverviewThe ATMEGA8L-8PU is a low-power 8-bit AVR RISC-based Microcontroller combines512K EEPROM and a 6 or 8 channel 10-bit A/D converter. The device supportsthroughput of 16 MIPS at 16MHz and operates between 2.7 to 5.5V.High-performance, Low-power AVR® 8-Bit MicrocontrollerAdvanced RISC ArchitectureHigh Endurance Non-volatile Memory SegmentsPower-on Reset and Programmable Brown-out DetectionInternal Calibrated RC OscillatorExternal and Internal Interrupt SourcesIdle, ADC Noise Reduction, Power-save, Power-down and Standby Sleep Modes0 to 8MHz Speed Grade3.6mA Active, 1.0mA Idle Mode and 0.5µA Power-down Mode Power ConsumptionApplicationsPower Management, Communications & Networking, Consumer ElectronicsProduct InformationProduct Range: AVR ATmega Family ATmega8 Series MicrocontrollersCPU Speed: 8MHzProgram Memory Size: 8KBOperating Frequency Max: 8MHzRAM Memory Size: 1KBNo. of Pins: 28PinsMCU Case Style: DIPIC Case / Package: DIPNo. of I/O's: 23I/O'sEmbedded Interface Type: I2C, SPI, UARTInterfaces: I2C, SPI, UARTSupply Voltage Min: 2.7VSupply Voltage Max: 5.5VMCU Family: AVR ATmegaMCU Series: ATmega8Operating Temperature Min: -40°COperating Temperature Max: 85°CQualification: -
