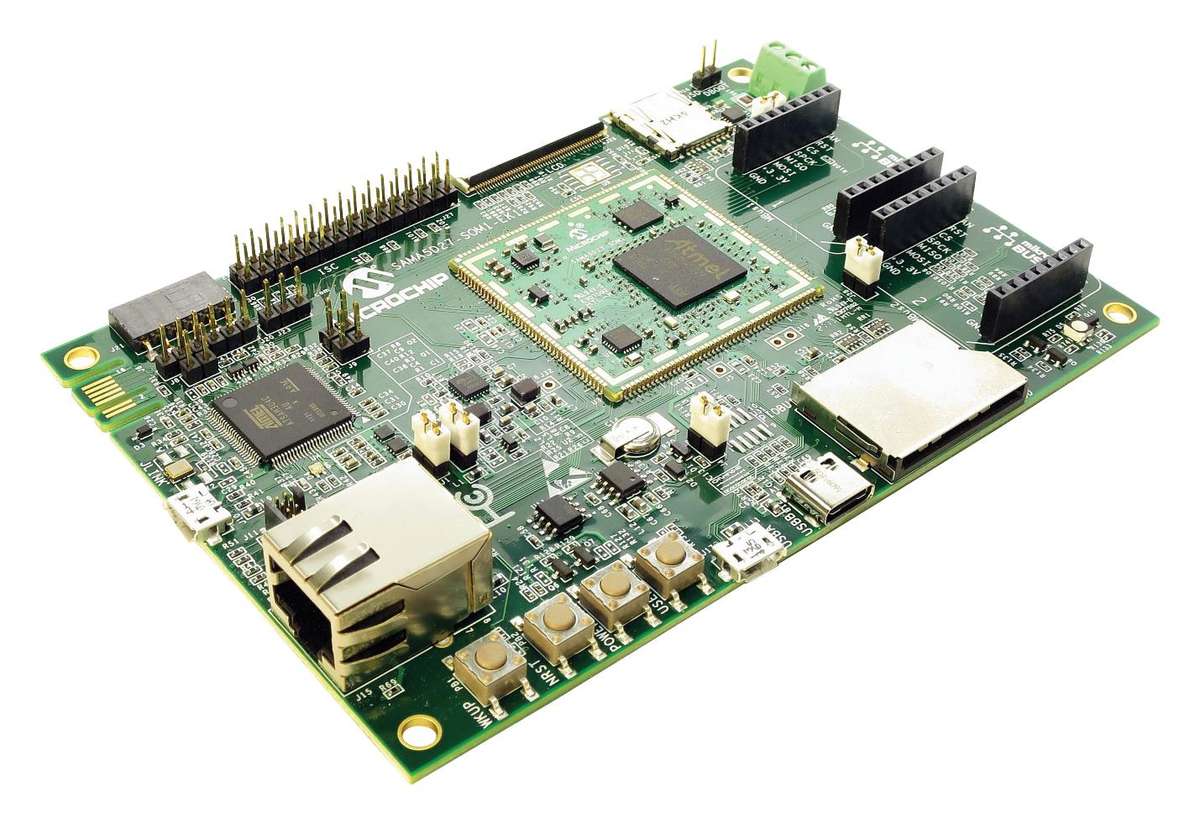

Microchip (ATSAMA5D27-SOM1-EK1) Development Kit, SAMA5D27 SoM, 1GB RAM

Product InformationSilicon Manufacturer: MicrochipNo. of Bits: 32bitSilicon Family Name: SAMA5D2Core Architecture: ARMCore Sub-Architecture: Cortex-A5Silicon Core Number: ATSAMA5D27CKit Contents: Eval Board ATSAMA5D27-SOM1 W/USB CableProduct Range: -Product OverviewFast prototyping and evaluation platform for the SAMA5D2 based SiP package andSAMA5D27-SOM1 (SAMA5D27 System On Module). The kit comprises a baseboard with asoldered ATSAMA5D27-SOM1 module. The module features an ATSAMA5D27C-D1G-CU SIPembedding a 1-Gbit (128 MB) DDR2 DRAM. The SOM integrates a Power Management IC(PMIC), a QSPI memory, a 10/100 Mbps Ethernet PHY and a serial EEPROM with a MACaddress. 128 GPIO pins are provided by the SOM for general use in the system.The board features a wide range of peripherals, as well as a user interface andexpansion options, including two mikroBUS click interface headers to supportMikroElektronika click boards and one PMOD interface.1 x CryptoAuthentication device ATECC508 (populated but not provisioned)USB: 1x USB host, 1x USB device, 1x USB HSIC (jumper not populated)1x Ethernet interface RJ45 connector, 1x CAN interface ATA6561LCD RGB 24-bit interface (50-pin FPC connector)Camera 12-bit interface (2x15 male connector)1x standard SD card interface, 1x microSD card interface1x JLINK-OB and JLINK-CDC, x1 JTAG interface1x RGB (Red, Green, Blue) LED, 4x push button switches,1x tamper connector, 1x PMOD connector, 2x mikroBUS connectorPower from USB A and USB JLINK-OB
