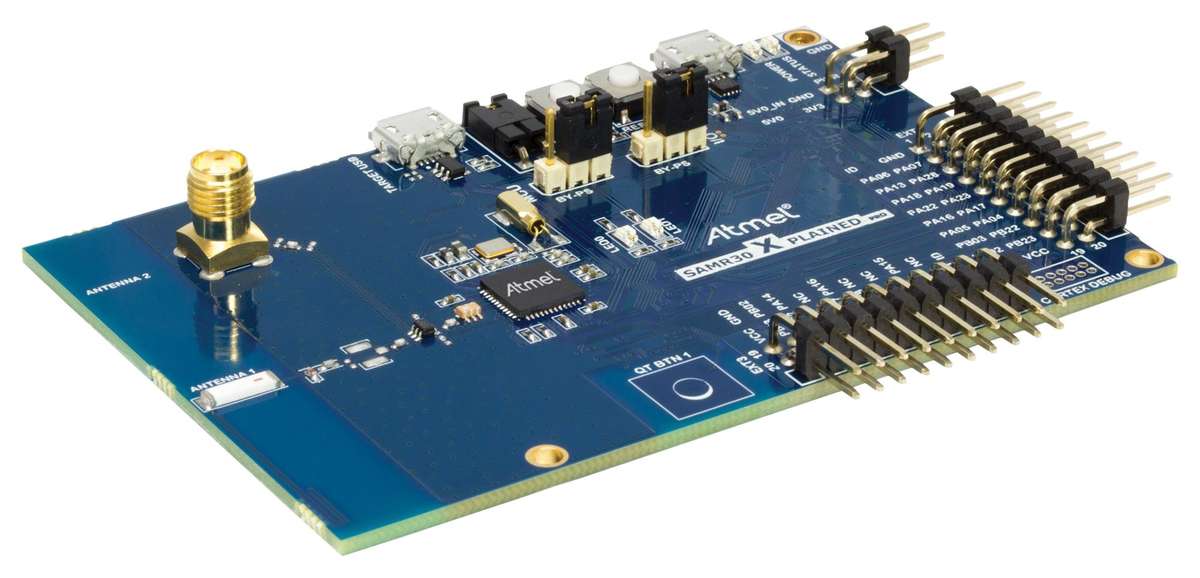

Microchip (ATSAMR30-XPRO) Evaluation Kit, SAM R30 Xplained Pro

Product Information:Silicon Manufacturer: MicrochipNo. of Bits: 32bitSilicon Family Name: SAM R30Core Architecture: ARMCore Sub-Architecture: Cortex-M0+Silicon Core Number: ATSAMR30G18AKit Contents: ATSAMR30 Xplained Pro MCU BoardProduct Range: -Product OverviewThe ATSAMR30-XPRO is a SAM R30 Xplained Pro evaluation kit. The SAM R30 deviceis an ARM-based, ultra low power microcontroller (MCU) equipped with an IEEE802.15.4-2003/2006/2011 standard that is compliant with RF interfaces forsub-1GHz frequency bands. It uses 32bit ARM Cortex- M0+ processor which operatesat a maximum of 48MHz (2.46 CoreMark/MHz) and offers 256KB flash and 40KB SRAM.This kit is supported by Atmel Studio, an integrated development platform whichprovides predefined application examples. This kit provides easy access tovarious features of ATSAMR30G18A SoC and offers additional peripherals to extendthe features of the board and ease development of custom designs. On-boardembedded debugger (EDBG) features Auto-ID for board identification in studio,one status LED, one power supply LED, symbolic debug of complex data types, datagateway interface Virtual COM port (CDC), programming and debugging includingpower measurements.Supports 868MHz and 915MHz dual (wideband) ISM bandOn-board embedded debugger (EDBG), two Xplained Pro extension headersEmbedded current measurement circuitry with data visualizer support for datavisualizationTwo mechanical buttons (user configurable button and RESET button)Two user LED (soft orange and green colour), one QTouch® buttonUSB interface, device and reduced host mode, FCC and CE (RED) certifiedOne ceramic chip antenna, one SMA connector for external antenna3 possible power sources (external power, embedded debugger (EDBG), USB target)32.768KHz crystal, clock source for controller, 16MHz crystal for RF die in SAMR30 deviceSupported with application examples in Atmel Software Framework (ASF)
