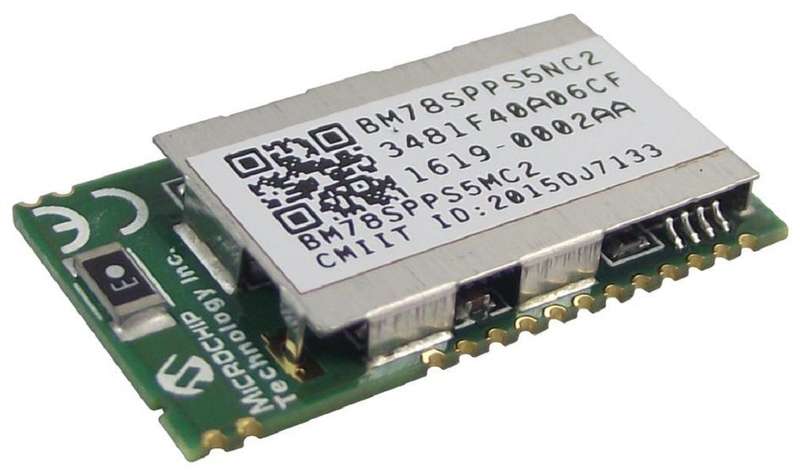

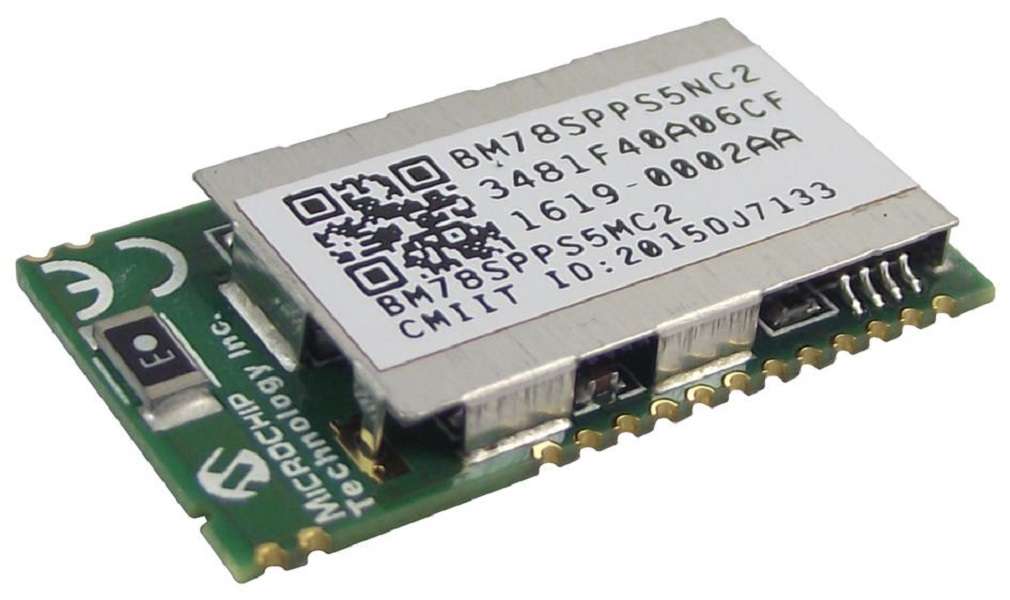

Microchip (BM78SPPS5NC2-0002AA) Bluetooth® Dual Mode v4.2 Module

Bluetooth® Dual Mode v4.2 Module, (BR/EDR + LE) Dual ModeProduct InformationBluetooth Version: Bluetooth 4.2Supply Voltage Min: 3.3VSupply Voltage Max: 4.2VSignal Range Max: -Data Rate: -Bluetooth Class: Class 2Receive Sensitivity: -92dBmOperating Temperature Min: -20°COperating Temperature Max: 70°CProduct Range: BM78 SeriesFeatures Bluetooth Classic (BR/EDR) and Low Energy (LE) Certified to FCC, ISED, MIC, KCC, SRRC and NCC Radio Regulations Radio Equipment Directive (RED) Assessed Radio Module Bluetooth 5.0 Certified Transparent UART mode for Seamless Serial Data over UART Interface Easy to Configure with User Interface (UI) Tool, a Windows®-based Utility orDirectly by MCUs Firmware can be Upgraded in the Field over UART (Flash version only) Integral Chip Antenna (BM78SPPS5MC2/NC2) or External Antenna(BM78SPP05MC2/NC2) Integrated Crystal, Internal Voltage Regulator and Matching Circuitry Configurable I/O Pins for Control and Status Supports Apple® iPod® Accessory Protocol (iAP2), (only BM78SPPx5MC2) Supports Bluetooth Low Energy Secure Connections Supports Bluetooth Low Energy Data Packet Length Extension Small and Compact Surface Mount Module Castellated Surface Mount Pads for Easy and Reliable Host PCB Mounting Ideal for Portable Battery-Operated Devices One LED Driver with 16-Step Brightness Control
