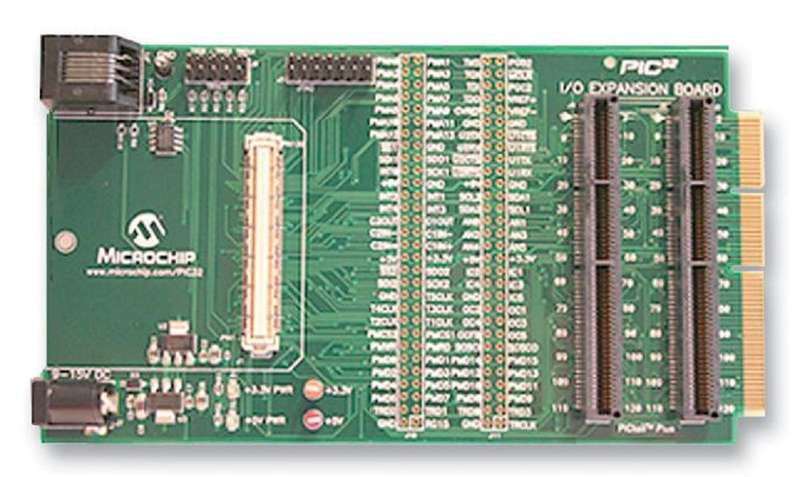

Microchip (DM320002) Exp Board, Full Access to Starter Board MCU Signals

Product InformationSilicon Manufacturer: MicrochipCore Architecture: PICCore Sub-Architecture: PIC32Silicon Core Number: PIC32MXSilicon Family Name: -For Use With: Starter Kits DM320001 & DM320003Kit Contents: BoardProduct Range: -Product OverviewThe DM320002 is a PIC32 I/O expansion-board. The PIC32 I/O expansion-boardprovides starter board (DM320001, DM320003) users with full access to MCUsignals, JTAG debugging, ICSP development and connection of PICtail plusdaughter cards. MCU signals are connected to the pin holes where verticalheaders can be installed for attaching prototype circuits or logic probes.Headers are provided for connecting JTAG tools or Microchip tools using the2-wire (ICSP) interface. A PIC32 starter kit (DM320001), PIC32 USB starterkit-II (DM320003-2), PIC32 Ethernet starter kit (DM320004), dsPIC33E USB starterkit (DM330012),or a PIC24E USB starter kit (DM240012) is required for runningapplication code as the I/O expansion-board does not have an MCU.Features 2-wire (ICSP) interfaceDM320002 features monitoring signals with logic probesUsers can connect an optional 9V power supply to expansion-boardApplicationsEmbedded Design & Development
