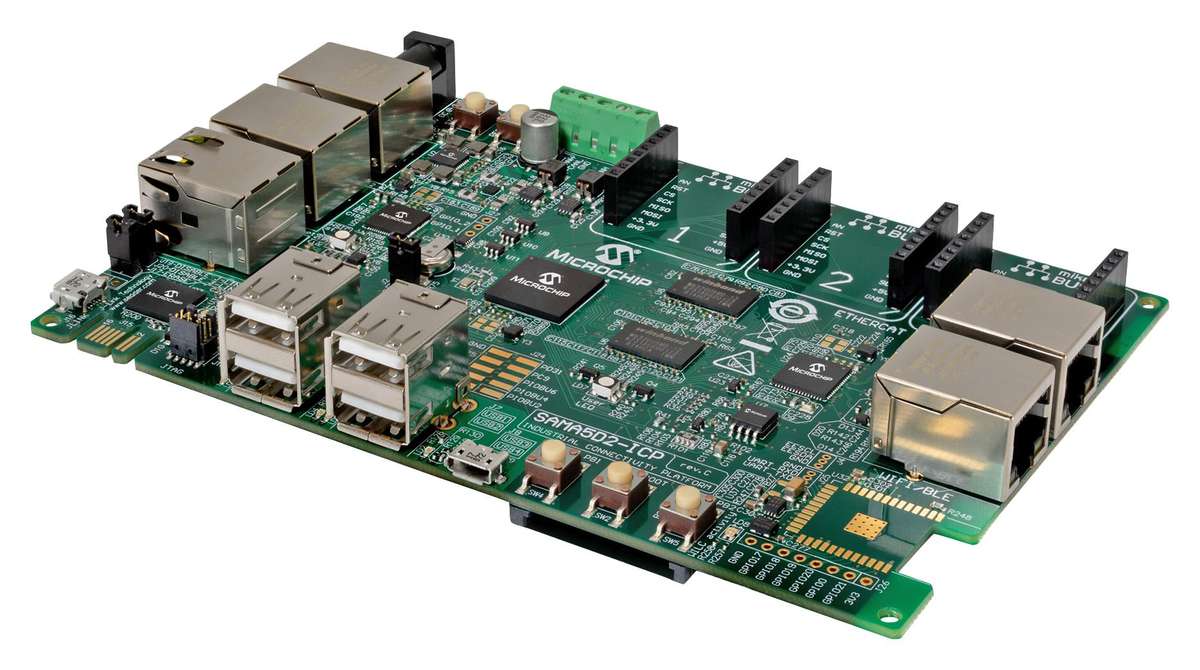

Microchip (EV26C77A) Eval Board, 32bBit, ARM Cortex-A5

Product Information:Silicon Manufacturer: MicrochipNo. of Bits: 32bitSilicon Family Name: SAMA5D2Core Architecture: ARMCore Sub-Architecture: Cortex-A5Silicon Core Number: ATSAMA5D2-ICPKit Contents: Eval Board ATSAMA5D2-ICP, USB-A to USB Micro-CableProduct Range: -Product OverviewATSAMA5D2-ICP industrial connectivity platform is ideal for evaluating andprototyping with high performance, ultra-low power SAMA5D27 Cortex-A5 basedmicroprocessor (MPU) running up to 500MHz. The SAMA5D27 features powerfulperipherals for connectivity and user interface applications and offers advancedsecurity functions. The SAMA5D2-ICP is a hardware and software platform thatdemonstrates the rich wired and wireless connectivity solutions for MicrochipSAMA5D2 Arm® Cortex®-A based microprocessors. It offers customers a startingpoint for their applications that include either EtherCAT, Ethernet 10/100 and10/100/1000, CAN, Wi-Fi®, Bluetooth® or USB communications or any combination ofthese. Connectors and expansion headers allows for easy customization and quickaccess to leading edge embedded features such as Mikroelektronica click boards.The kit includes an on-board embedded debugger, eliminating the need forexternal tools to program or debug.Two winbond W632GU6MB 2Gb DDR3L SDRAMSST26VF064B 64Mb QSPI flash, user RGB LEDThree 24AA025E48 EEPROMFootprint for ATWILC3000-MR110CA WI-FI/BLE module (not mounted by default)LAN9252I/ML EtherCAT, two EtherCAT-P female connectorsLAN7850T-I/8JX USB HSIC to Gbit Ethernet bridge (1 x RJ45 connector)KSZ8563RNXI 3-port Ethernet switch (2 x RJ45 connectors)USB2534 4-port USB hub, two user buttons, reset button, disable boot button,wake-up buttonMicrochip MCP16502 power management IC, Microchip PAC1934 power monitor IC1 x SD card connector, 3 x miKroBus connectors, support for ECC608, RS485
