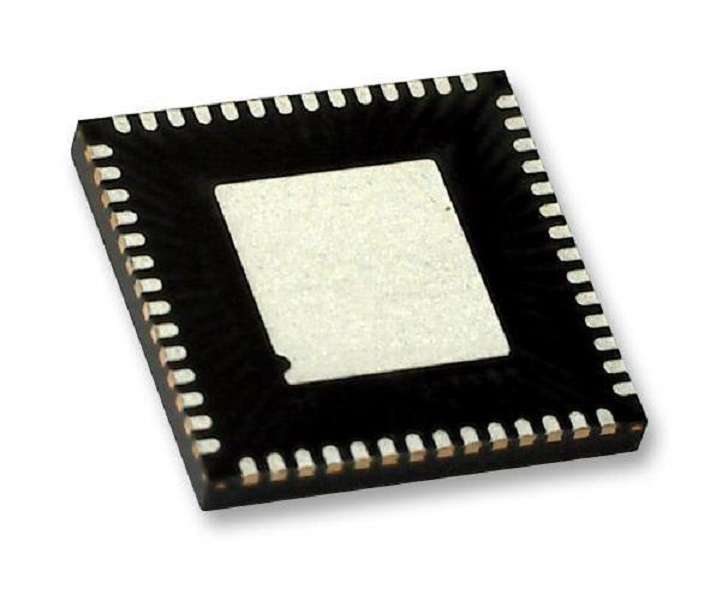

Microchip (LAN9500A-ABZJ) Ethernet Controller, 100 Mbps, IEEE 802.3

Ethernet Controller, 100 Mbps, IEEE 802.3, IEEE 802.3u, 3 V, 3.6 V, QFN, 56 PinsProduct OverviewThe LAN9500A-ABZJ is a hi-speed USB 2.0 to 10/100 Ethernet Controller provides ahigh-performance, USB to Ethernet connectivity solution containing an integrated10/100 Ethernet PHY, hi-speed USB 2.0 PHY, hi-speed USB 2.0 controller, 10/100Ethernet MAC, TAP controller, EEPROM and FIFO controller. The LAN9500A supports±8kV HBM and ±15kV air discharge ESD protection and require only a single 25MHzcrystal, which helps to keep BOM costs for external components to a minimum. Anexternal MII and Turbo MII interface provides support for fast Ethernet,HomePlug® and HomePNA (HPNA) functionality. This device features proprietaryNetDetach and UniClock technology. NetDetach allows for up to a 25% reductionin system power by enabling the host CPU to enter a low-power state whenEthernet is inactive.Integrated 10/100 Ethernet MAC with full-duplex supportIntegrated 10/100 Ethernet PHY with HP auto-MDIX supportIntegrated USB 2.0 hi-speed device controllerIntegrated USB 2.0 hi-speed PHYImplements reduced power operating modesEEPROM-less design option helps to reduce BOM costsImplements reduced power operating modes including enhanced energy detectpower-downProprietaryNetDetach technology for lower hardware power consumptionDrop-in compatibleApplicationsEmbedded Design & Development, Communications & Networking, ConsumerElectronics, Test & Measurement, AudioProduct InformationData Rate: 100MbpsEthernet Type: IEEE 802.3, IEEE 802.3uSupply Voltage Min: 3VSupply Voltage Max: 3.6VController IC Case Style: QFNNo. of Pins: 56PinsIC Interface Type: MIIOperating Temperature Min: 0°COperating Temperature Max: 70°CMSL: MSL 1 - Unlimited
