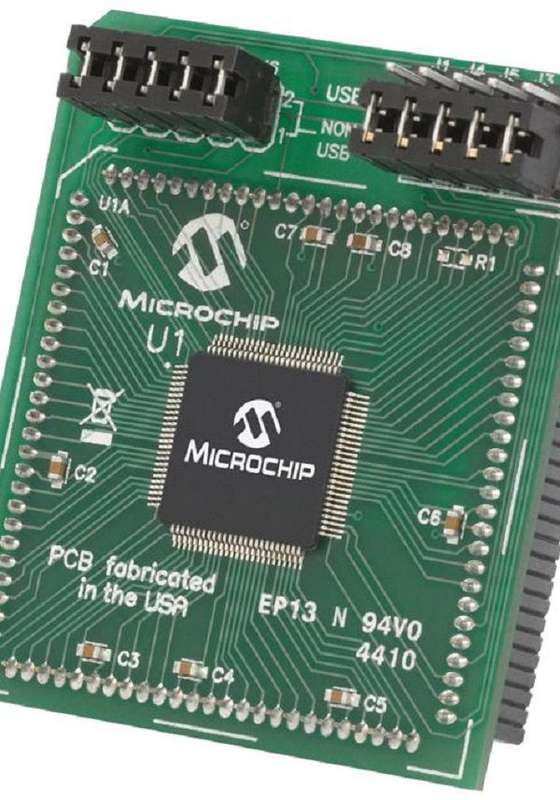

Microchip (MA330025-1) Daughter Board, dsPIC33EP512MU810 Plug-In-Module

Product InformationSilicon Manufacturer: MicrochipCore Architecture: dsPICCore Sub-Architecture: dsPIC33Silicon Core Number: dsPIC33ESilicon Family Name: dsPIC33EFor Use With: DM240001 / DM240002 Explorer 16 boardKit Contents: Board onlyProduct Range: -Product OverviewThe MA330025-1 is a dsPIC33EP512MU810 general purpose & motor control PIM. Thisplug-in module comes with a 100-pin dsPIC33EP512MU810-I/PT device. This PIM canbe used for USB or non-USB applications by configuring jumpers on the PIM PCboard. It is intended to be used with the explorer 16 board (DM240001 orDM240002) for general-purpose application development or to control theMicrochip MCHV (DM330023), MCLV (DM330021) or MCSM (DM330022) motor controldevelopment boards.Modified Harvard architecture with 16bit wide data path, 24bit wide instructionsTwo 40bit accumulators with rounding and saturation optionsTwo master time base modules can control dual 3-phase motors simultaneouslyUp to seven PWM generators, Two PWM outputs per PWM generator and 8.32 ns PWMresolution32bit position counter and 32bit Index pulse counterTwo independent ADC modules, Flexible and independent ADC trigger sourcesNine 16bit timers/counters. Unused output compares can be used as standard timesfor 25 timers16 input capture, 16 output compare/PWM, Hardware real time clock and calendar15 channel DMA with user-selectable priority arbitrationReal time clock and calendar (RTCC) module
