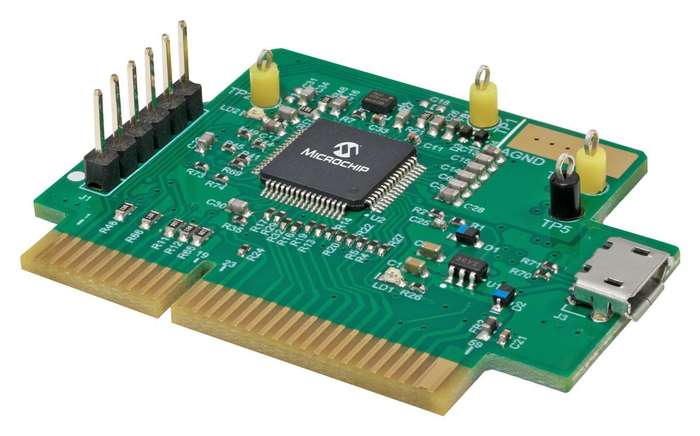

Product InformationSilicon Manufacturer: MicrochipCore Architecture: dsPICCore Sub-Architecture: dsPIC33Silicon Core Number: dsPIC33EP128GS806Silicon Family Name: dsPIC33EPxxxGS80xFor Use With: Development Of General Purpose DSC Control ApplicationsKit Contents: Plug-In Module dsPIC33EP128GS806Product Range: -Product OverviewdsPIC33EP128GS806 Digital Power Plug-In Module (DP PIM) is a demonstration boardthat showcases the Microchip dsPIC33EP128GS806 16-Bit Digital Signal Controller(DSC) features. The DP PIM provides access to the dsPIC33EP128GS806 analogueinputs, the Digital-to-Analog Converter (DAC) outputs, the Pulse-WidthModulation (PWM) outputs and the General Purpose Input and Output (GPIO) ports.ICSP programming header (6-pin, 2.54mm header)On-board LDO (3.6VDC to 6.3VDC) with power good (PG) functionSolder pad for ground connectionMicro USB connectorMCP2221A USB to UART/I2C serial converterPower indicator LED (green)User LED (red)Board edge connection interface for analogue inputs/outputs, PWM outputs andGPIO portsAnalog input with op amp buffer via test point loop connector can be used forBode plot measurementsTest point loops for DAC outputs
