Microchip (MA330049) Plug-in Module, dsPIC33CH512MP506

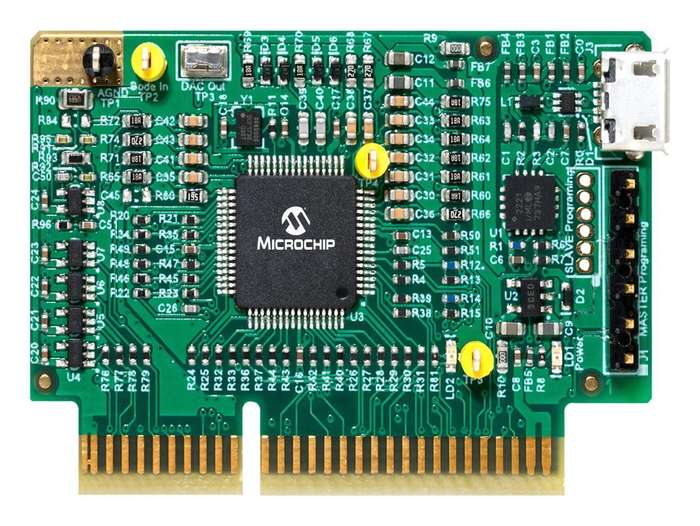

Product InformationSilicon Manufacturer: MicrochipCore Architecture: dsPICCore Sub-Architecture: dsPIC33Silicon Core Number: dsPIC33CH512MP506Silicon Family Name: dsPIC33CHxxxMPxxxFor Use With: Microchip Digital Power Development Board (DM330029) & Low VoltagePFC Development Board (DV330101)Kit Contents: Plug-in Module dsPIC33CH512MP506Product Range: -Product OverviewdsPIC33CH512MP506 Digital Power Plug-In Module (DP PIM) is a demonstration boardthat, in conjunction with different power boards, showcases the MicrochipdsPIC33CH512MP506 16-Bit Digital Signal Controller (DSC) features. The DP PIMprovides access to the dsPIC33CH512MP506 analogue inputs, the Digital-to-AnalogConverter (DAC) output, the Pulse-Width Modulation (PWM) outputs and the GeneralPurpose Input and Output (GPIO) ports. Compatible with Digital Power DevelopmentBoard (Part No. DM330029) and Low Voltage PFC Development Board (Part No.DV330101).Microchip dsPIC33CH512MP506 16-Bit Digital Signal ControllerICSP programming headerBoth cores can be programmed and debugged through one ICSP interfaceOn-board LDO with Power Good (PG) functionMicro USB connectorMCP2221A USB to UART/I2C serial converterBoard edge connection interface for analogue inputs/outputs, PWM outputs andGPIO portsTest point loop for DAC output
