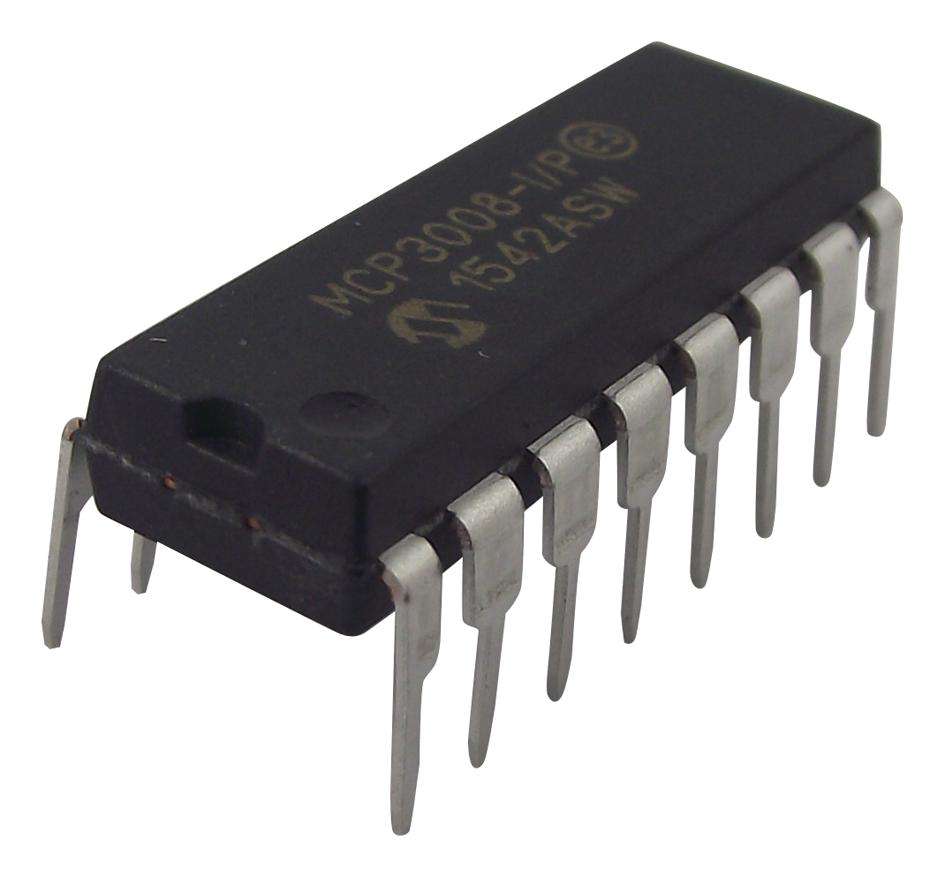

Microchip (MCP3008-I/P) Analogue to Digital Converter, Octal, 10 bit

Analogue to Digital Converter, Octal, 10 bit, 200 kSPS, Pseudo Differential,Single EndedProduct OverviewThe MCP3008 device is a successive approximation 10-bit analogue-to-digitalconverter with on-board sample and hold circuitry. It is programmable to providefour pseudo-differential input pairs or eight single-ended inputs. DifferentialNonlinearity (DNL) and Integral Nonlinearity (INL) are specified at ±1 LSB.Communication with the devices is accomplished using a simple serial interfacecompatible with the SPI protocol.10-bit resolution± 1 LSB max DNL± 1 LSB max INLAnalogue inputs programmable as single-ended or pseudo-differential pairsOn-chip sample and holdLow power CMOS technologyApplicationsSensing & Instrumentation, Signal Processing, Automation & Process Control,AutomotiveProduct InformationResolution (Bits): 10bitSampling Rate: 200kSPSInput Channel Type: Pseudo Differential, Single EndedData Interface: Serial, SPISupply Voltage Type: SingleSupply Voltage Min: 2.7VSupply Voltage Max: 5.5VADC / DAC Case Style: DIPNo. of Pins: 16PinsOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: Octal 10-Bit SAR ADCsAutomotive Qualification Standard: AEC-Q100MSL: MSL 1 - Unlimited
