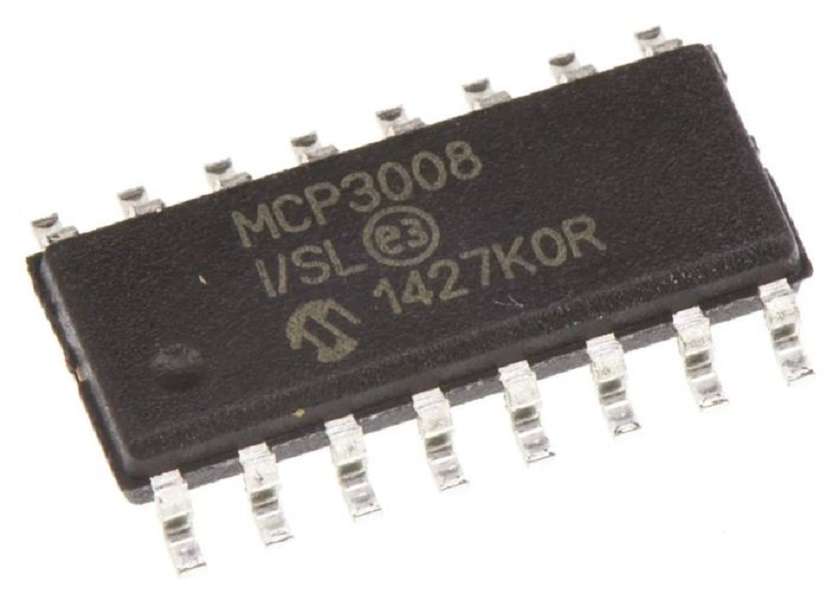

Microchip (MCP3008-I/SL) Analogue to Digital Converter, Octal, 10 bit

Analogue to Digital Converter, Octal, 10 bit, 200 kSPS, Pseudo Differential,Single EndedProduct OverviewThe MCP3008-I/SL is an 8 channel, 10bit Analogue to Digital (ADC) Converter withSPI interface in 16 pin SOIC package. This ADC combines high performance and lowpower consumption in a small package by making it as an ideal for embeddedcontrol applications. The MCP3008 features successive approximation register(SAR) architecture with onboard sample and hold circuitry allowing 10bit ADCcapability to be added to any PIC microcontroller. It is programmable to providefour pseudo differential input pairs or eight single ended inputs. Differentialnonlinearity (DNL) and integral nonlinearity (INL) are specified at ±1LSB.Communication with devices is accomplished using simple serial interfacecompatible with SPI protocol. Low current design permits operation with typicalstandby currents of only 5nA (2µA maximum) and typical active currents of 320µA(500µA maximum).Analogue inputs programmable as single ended or pseudo differential pairsSingle supply operation from 2.7V to 5.5VMaximum sampling rate is 200KSPS at VDD=5VMaximum sampling rate is 75KSPS at VDD=2.7VLow power CMOS technologyIndustrial temperature range from -40°C to 85°CApplicationsSignal Processing, Test & Measurement, Sensing & Instrumentation, Industrial,Motor Drive & Control, Robotics, Automation & Process Control, Portable Devices,Medical, AutomotiveProduct InformationResolution (Bits): 10bitSampling Rate: 200kSPSInput Channel Type: Pseudo Differential, Single EndedSupply Voltage Min: 2.7VData Interface: Serial, SPISupply Voltage Type: SingleSupply Voltage Max: 5.5VADC / DAC Case Style: SOICNo. of Pins: 16PinsOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: Octal 10-Bit SAR ADCsMSL: MSL 1 - Unlimited
