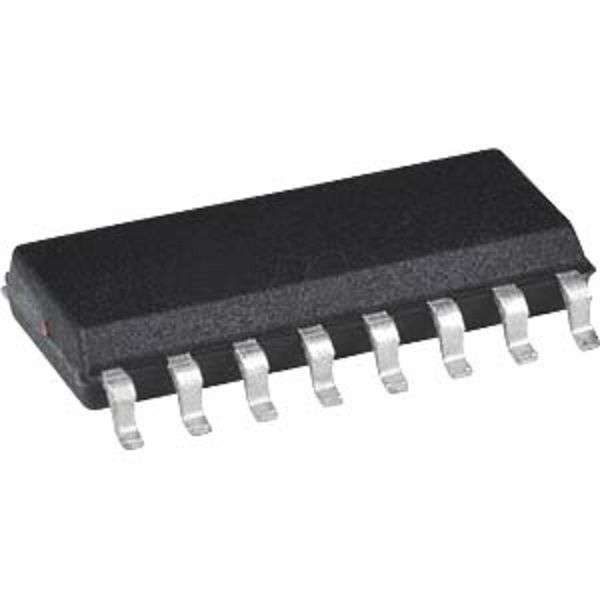

Microchip (MCP3208-CI/SL) Analogue to Digital Converter, 12 bit, 100 kSPS

Analogue to Digital Converter, 12 bit, 100 kSPS, Pseudo Differential, SingleEnded, Serial, SPIProduct OverviewThe MCP3208-CI/SL is an 8 channel, 12bit Analogue to Digital Converter (ADC)with SPI interface in 16 pin SOIC package. This ADC combines high performanceand low power consumption in a small package by making it as an ideal forembedded control applications. The MCP3208 features successive approximationregister (SAR) architecture with onboard sample and hold circuitry allowing12bit ADC capability to be added to any PIC microcontroller. It is programmableto provide four pseudo differential input pairs or eight single ended inputs.Differential nonlinearity (DNL) is specified at ±1LSB and integral nonlinearity(INL) is ±2LSB. Communication with devices is accomplished using simple serialinterface compatible with SPI protocol. Low current design permits operationwith typical standby and active currents of only 500nA (2µA maximum) and 320µA(400µA maximum) respectively.Analogue inputs programmable as single ended or pseudo differential pairsSingle supply operation from 2.7V to 5.5VMaximum sampling rate is 100KSPS at VDD=5VMaximum sampling rate is 50KSPS at VDD=2.7VLow power CMOS technologyIndustrial temperature range from -40°C to 85°CApplicationsSignal Processing, Test & Measurement, Sensing & Instrumentation, Industrial,Motor Drive & Control, Robotics, Automation & Process Control, Portable Devices,Medical, AutomotiveProduct InformationResolution (Bits): 12bitSampling Rate: 100kSPSInput Channel Type: Pseudo Differential, Single EndedSupply Voltage Min: 2.7VData Interface: Serial, SPISupply Voltage Type: SingleSupply Voltage Max: 5.5VADC / DAC Case Style: SOICNo. of Pins: 16PinsOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: Octal 12-Bit SAR ADCsMSL: MSL 1 - Unlimited
