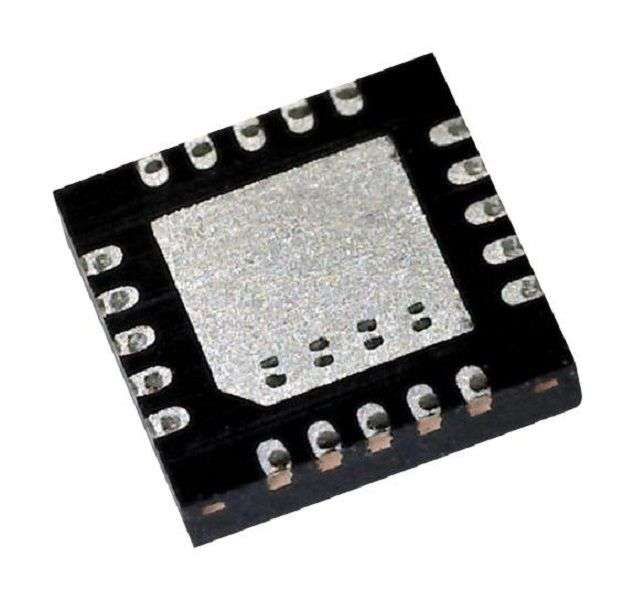

Microchip (MCP3561T-E/NC) Analogue to Digital Converter, 24 bit

Analogue to Digital Converter, 24 bit, 153.6 kSPS, Differential, Single Ended,SPI, Single, 2.7 VProduct OverviewThe MCP3561 is a single channel, 24-bit precision delta-sigma analog-to-digitalconverter (ADC) with integrated programmable gain amplifier (PGA), oscillatorand temperature sensor. With 24-bit resolution and data rates up to 153.6kilo-samples-per-second (kSPS), the MCP3561 can be used in a wide range of highspeed and high precision ADC applications.24-bit ResolutionDifferential and Single-ended Input OperationProgrammable Gain: 1/3, 1, 2, 4, 8, 16, 32, 64Programmable Data Rates: Up to 153.6kSPSInternal OscillatorInternal Temperature SensorProduct InformationResolution (Bits): 24bitSampling Rate: 153.6kSPSInput Channel Type: Differential, Single EndedData Interface: SPISupply Voltage Type: SingleSupply Voltage Min: 2.7VSupply Voltage Max: 3.6VADC / DAC Case Style: µQFNNo. of Pins: 20PinsOperating Temperature Min: -40°COperating Temperature Max: 125°CProduct Range: Single 24-Bit Delta-Sigma ADCsMSL: MSL 1 - Unlimited
