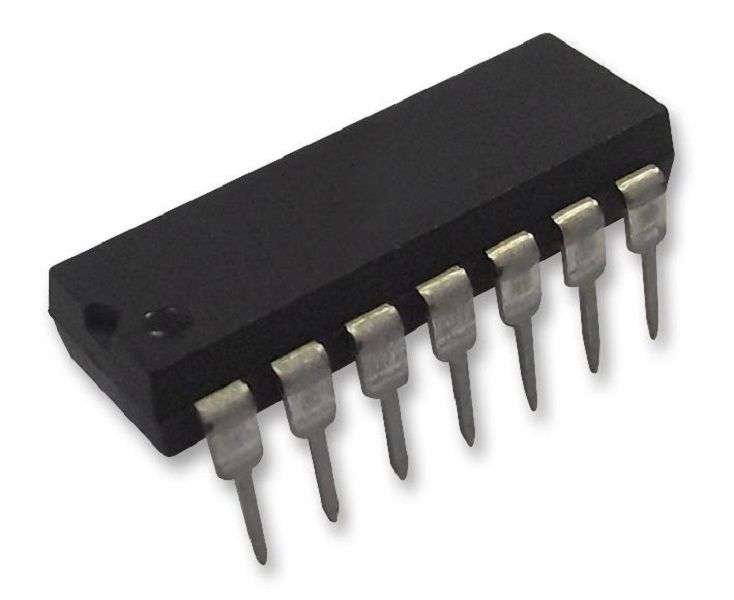

Microchip (MCP6024-I/P) Operational Amplifier, Quad, 4 Amplifier,

Operational Amplifier, Quad, 4 Amplifier, 14 MHz, 7 V/µs, 2.5V to 5.5V, DIP, 14PinsProduct OverviewThe MCP6024-I/P is a quad rail-to-rail input/output Operational Amplifier withhigh performance. A low typical operating current of 1mA and an offset voltagethat is less than 0.5mV. The MCP6024 features advanced CMOS technology provideslow bias current, high-speed operation, high open-loop gain and rail-to-railoutput swing. The MCP6024 operates with a single supply voltage that can be aslow as 2.5V, while drawing less than 1.35mA of quiescent current per amplifier.This amplifier is ideal for battery and loop-powered applications as well aslow-power battery-operated devices, data acquisition equipment and low-end audioapplications.Trimmed for low offset voltageUnity gain stable8.7nV/?Hz at 10kHz Typical low noise0.00053% (typical, G = 1 V/V) Total harmonic distortionApplicationsIndustrial, Automation & Process Control, Power Management, Portable Devices,Test & Measurement, Audio, Automotive, MedicalProduct InformationNo. of Amplifiers: 4 AmplifierBandwidth: 14MHzSlew Rate: 7V/µsSupply Voltage Range: 2.5V to 5.5VAmplifier Case Style: DIPNo. of Pins: 14PinsOperating Temperature Min: -40°COperating Temperature Max: 125°C
