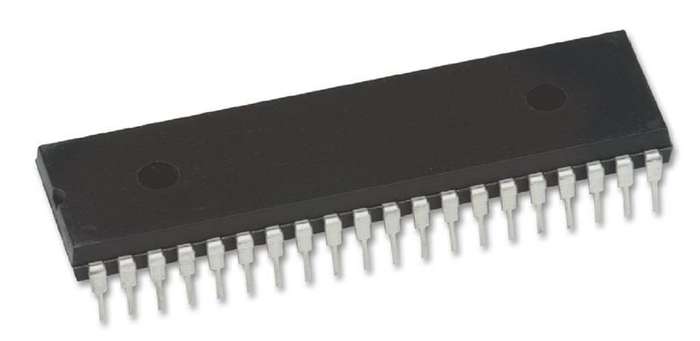

Microchip (MM5450YN) LED Driver, 4.75V to 11V input

Product OverviewThe MM5450YN is a LED Display Driver is monolithic MOS ICs fabricated in anN-channel, metal gate process. The technology produces low-threshold,enhancement-mode and ion-implanted depletion-mode devices. A single pin controlsthe LED display brightness by setting a reference current through a variableresistor connected to the supply.Continuous brightness controlSerial data inputNo load signal requirementWide power supply operationTTL compatibility34 or 35 Outputs, 15mA capabilityAlphanumeric capabilityApplicationsIndustrial, Test & Measurement, Metering, Clock & Timing, Sensing &InstrumentationProduct InformationNo. of Digits: 5No. of Segments: 7Driver Case Style: DIPNo. of Pins: 40PinsSupply Voltage Min: 4.75VSupply Voltage Max: 11VInterface Type: -Operating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: -MSL: -
