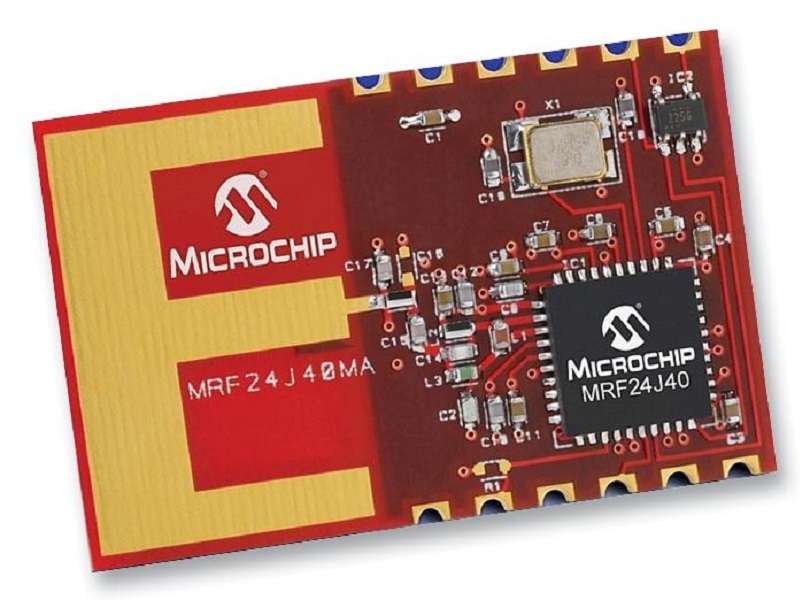

Microchip (MRF24J40MA-I/RM) RF Transceiver Radio Module, 250Kbps

RF Transceiver Radio Module, 250Kbps, PCB Antenna, 2.483 GHzProduct OverviewThe MRF24J40MA is +0 dBm PICDEM Z 2.4GHz IEEE 802.15.4 radio transceiver module.The MRF24J40MA has an integrated PCB antenna, matching circuitry, and supportsthe ZigBee, MiWi and MiWi P2P protocols. The module is attached to thecarrier board with a 12-pin modular connector allowing the RF Board to be usedwith the current PICDEM Z development kit or as a production module towirelessly enable customer designs. The MRF24J40MA module can connect to manypopular Microchip PIC® microcontrollers and is an ideal solution for wirelesssensor networks, home automation, building automation and consumer applications.The MRF24J40MA module operates in the non-licensed 2.4 GHz frequency band and isFCC, IC and ETSI compliant. The integrated module design frees the integratorfrom extensive RF and antenna design, and regulatory compliance testing,allowing quicker time to market.IEEE Std. 802.15.4 Compliant RF TransceiverSupports ZigBee®, MiWi, MiWi P2P and proprietary wireless networking protocolsSimple four-wire SPI interface to PIC® microcontrollerIntegrated 20 MHz and 32.768 kHz oscillator driveLow current consumptionHardware CSMA-CA MechanismHardware security engine (AES-128)Up to 400 ft. rangeFCC (USA), IC (Canade), ETSI (Europe) CertifiedHardware Security Engine (AES-128) with CTR, CCM and CBC-MAC modesApplicationsWireless, Security, Building Automation, Consumer Electronics, ConsumerElectronicsProduct InformationRF Modulation: DSSSData Rate Max: 250KbpsFrequency Max: 2.483GHzSensitivity dBm: -94dBmSupply Voltage Min: 2.4VSupply Voltage Max: 3.6VModule Interface: 4 Wire, SPISupply Current: 23mAProduct Range: -
