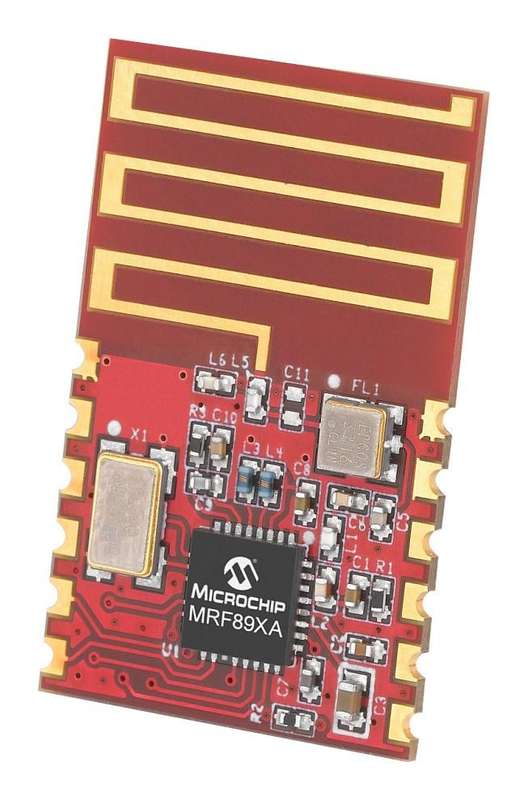

Transceiver Module, Surface Mount, Ultra Low Power, 868 MhzProduct OverviewThe MRF89XAM8A-I/RM is a MRF89XAM8A ultra low power sub GHz surface mounttransceiver module with integrated crystal, internal voltage regulator, matchingcircuitry and PCB antenna PICtail/PICtail Plus daughter board. The MRF89XAM8Amodule operates in the european 863MHz to 870MHz frequency band and is ETSIcompliant. The integrated module design frees the integrator from the extensiveRF and antenna design, and regulatory compliance testing, allowing quicker timeto market. The daughter board can be plugged into multiple demonstration anddevelopment boards. For example, the daughter board is appropriate for 8bitmicrocontroller development using the PIC18 explorer board or for 16bit or 32bitmicrocontroller development using the explorer 16 development board.Module designed from the MRF89XA integrated ultra low power, sub GHz transceiverICSupports proprietary sub GHz wireless protocolsSimple, SPI interface with interruptsSmall size 0.7" x 1.1" (17.8mm x 27.9mm), surface mountableIntegrated crystal, internal voltage regulator, matching circuitry and PCBantennaEasy integration into final product minimize product development, quicker timeto marketApplicationsMedical, Wireless, Communications & Networking, Automation & Process Control,Automotive, Hobby & Education, System Monitoring, Industrial, SecurityProduct InformationRF Modulation: FSK, OOKData Rate Max: 40KbpsFrequency Max: 870MHzSensitivity dBm: 107dBmSupply Voltage Min: 2.1VSupply Voltage Max: 3.6VTransmit Power: -Module Interface: SPISupply Current: 25mARF Transceiver Applications: Wireless Sensor Networks, Home Automation, BuildingAutomation & ConsumerProduct Range: -
