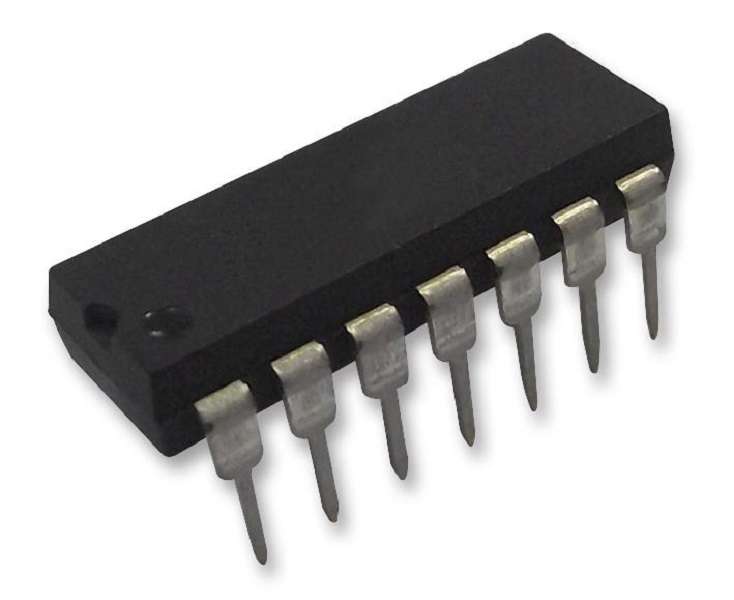

8 Bit MCU, Flash, PIC16 Family PIC16F14xx Series Microcontrollers, 48 MHz, 14KB, 14 Pins, DIPProduct OverviewThe PIC16F1455-I/P is a 14-pin 8-bit Flash USB Microcontroller with XLPtechnology. This family of device contains an enhanced mid-range 8-bit CPU core.The CPU has 49 instructions. Interrupt capability includes automatic contextsaving. The hardware stack is 16 levels deep and has overflow and underflowreset capability. The microcontroller with direct, indirect and relativeaddressing modes. Two file select registers (FSRs) provides the ability to readprogram and data memory.Enhanced mid-range core with 49 instruction, 16 stack levelsFlash program memory with self read/write capabilityHigh endurance flash memory (HEF)128-byte of non-volatile data storageInternal 48MHz oscillatorUniversal serial bus 2.0 module with clock recovery from USB host2x standalone PWM modulesComplementary waveform generator (CWG) moduleIntegrated temperature indicator module10-channel 10-bit ADC with voltage reference2 Analogue comparators5-bit Digital to Analogue Converter (DAC)MI²C/SPI moduleEnhanced addressable USART module25mA Source/sink current I/O2x 8-bit Timers (TMR0/TMR2)1x 16-bit Timer (TMR1)Extended watchdog timer (WDT)Enhanced power-on/off-resetLow-power brown-out reset (LPBOR)ApplicationsIndustrial, AutomotiveProduct InformationProduct Range: PIC16 Family PIC16F14xx Series MicrocontrollersProgram Memory Size: 14KBOperating Frequency Max: 48MHzRAM Memory Size: 1KBNo. of Pins: 14PinsMCU Case Style: DIPIC Case / Package: DIPNo. of I/O's: 11I/O'sEmbedded Interface Type: EUSART, I2C, SPI, USBInterfaces: EUSART, I2C, SPI, USBSupply Voltage Min: 2.5VSupply Voltage Max: 5.5VMCU Family: PIC16MCU Series: PIC16F14xxOperating Temperature Min: -40°COperating Temperature Max: 85°CQualification: AEC-Q100
