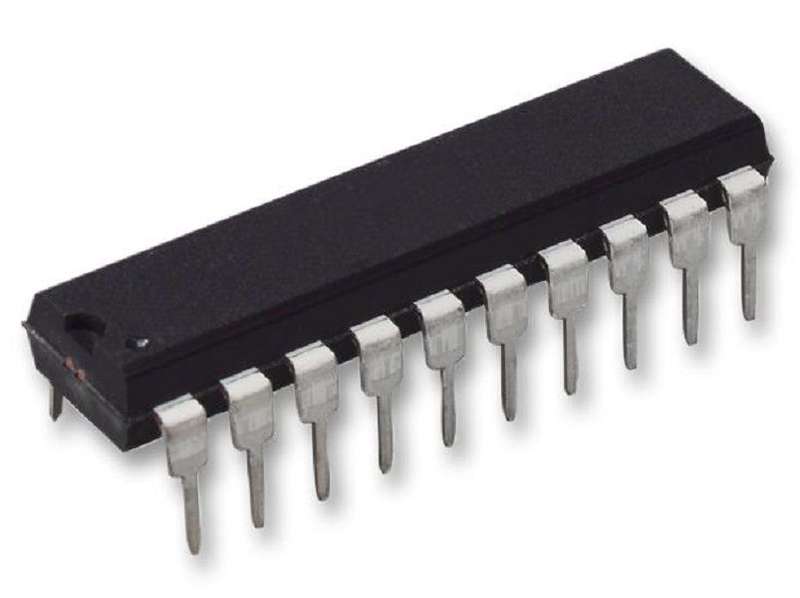

Microchip (PIC16F1829-I/P) 8 Bit MCU, Flash, 32 MHz, 14 KB, 20 Pins, DIP

8 Bit MCU, Flash, PIC16 Family PIC16F18XX Series Microcontrollers, 32 MHz, 14KB, 20 Pins, DIPProduct OverviewThe PIC16F1829-I/P is a 20-pin Flash Microcontroller with XLP technology. Thisfamily of devices contain an enhanced mid-range 8-bit CPU core. The CPU has 49instructions. Interrupt capability includes automatic context saving. Thehardware stack is 16 levels deep and has overflow and underflow resetcapability. The microcontroller with direct, indirect and relative addressingmodes. Two file select registers (FSRs) provide the ability to read program anddata memory. The enhanced mid-range core has a 15-bit program counter capable ofaddressing 32k x 14 program memory space. Accessing a location above theseboundaries will cause a wrap-around within the implemented memory space.Flash program memory with self read/write capabilityInternal 32MHz oscillatorIntegrated capacitive mTouch sensing moduleData signal modulator for generation of custom bit streamsCVREF can be used as 5-bit DACMI²C, SPI, EUSART with auto baud2 ECCP and 2 CCP (enhanced/capture compare PWM)Comparators with selectable voltage reference12-channel 10-bit ADC with voltage reference25mA Source/sink current I/OFour 8-bit timers (TMR0/TMR2/TMR4/TMR6)One 16-bit Timer (TMR1)Extended watchdog timer (EWDT)Enhanced power-on/off-resetBrown-out reset (BOR)In-Circuit Serial Programming (ICSP)On board in-circuit debugPower-on reset (POR), power-up timer (PWRT) and oscillator start-up timer (OST)Enhanced low-voltage programming (LVP)Programmable code protectionApplicationsIndustrial, AutomotiveProduct InformationProduct Range: PIC16 Family PIC16F18XX Series MicrocontrollersCPU Speed: 32MHzProgram Memory Size: 14KBOperating Frequency Max: 32MHzRAM Memory Size: 1KBNo. of Pins: 20PinsMCU Case Style: DIPIC Case / Package: DIPNo. of I/O's: 18I/O'sEmbedded Interface Type: EUSART, I2C, SPIInterfaces: EUSART, I2C, SPISupply Voltage Min: 1.8VSupply Voltage Max: 5.5VMCU Family: PIC16MCU Series: PIC16F18xxOperating Temperature Min: -40°COperating Temperature Max: 85°CQualification: AEC-Q100
