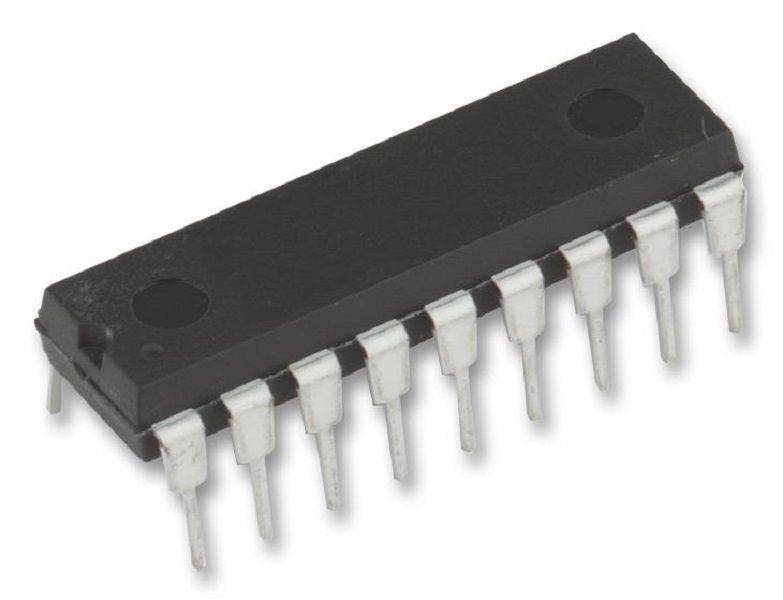

Microchip (PIC16F1847-I/P) 8 Bit MCU, Flash, 32 MHz, 14 KB, 18 Pins, DIP

8 Bit MCU, Flash, PIC16 Family PIC16F18XX Series Microcontrollers, 32 MHz, 14KB, 18 Pins, DIPProduct OverviewThe PIC16F1847-I/P is a 8-bit 18-pin Flash Microcontroller with XLP technology.This family of device contains an enhanced mid-range 8-bit CPU core. The CPU has49 instructions. Interrupt capability includes automatic context saving. Thehardware stack is 16 levels deep and has overflow and underflow resetcapability. The microcontroller with direct, indirect and relative addressingmodes. Two file select registers (FSRs) provides the ability to read program anddata memory. The enhanced mid-range core has a 15-bit program counter capable ofaddressing a 32k x 14 program memory space. Accessing a location above theseboundaries will cause a wrap-around within the implemented memory space. Thereset vector is at 0000h and the interrupt vector is at 0004h.Enhanced mid-range core with 49 instruction, 16 stack levelsFlash program memory with self read/write capabilityIntegrated capacitive mTouch sensing moduleData signal modulator moduleMI²C, SPI, EUSART with auto baud2 ECCP and 2 CCP (enhanced/capture compare PWM)Comparators with selectable voltage reference12-channel 10-bit ADC with voltage reference25mA Source/sink current I/OFour 8-bit timers (TMR0/TMR2/TMR4/TMR6)One 16-bit Timer (TMR1)Extended watchdog timer (EWDT)Enhanced power-on/off-resetBrown-out reset (BOR)In-Circuit Serial Programming (ICSP)On board in-circuit debugPower-on reset (POR), power-up timer (PWRT) and oscillator start-up timer (OST)Programmable brown-out reset (BOR)Extended watchdog timer (WDT)Programmable code protectionApplicationsIndustrial, Computers & Computer Peripherals, AutomotiveProduct InformationProduct Range: PIC16 Family PIC16F18XX Series MicrocontrollersCPU Speed: 32MHzProgram Memory Size: 14KBOperating Frequency Max: 32MHzRAM Memory Size: 1KBNo. of Pins: 18PinsMCU Case Style: DIPIC Case / Package: DIPNo. of I/O's: 16I/O'sEmbedded Interface Type: SPIInterfaces: SPISupply Voltage Min: 1.8VSupply Voltage Max: 5.5VMCU Family: PIC16MCU Series: PIC16F18xxOperating Temperature Min: -40°COperating Temperature Max: 85°CQualification: AEC-Q100
