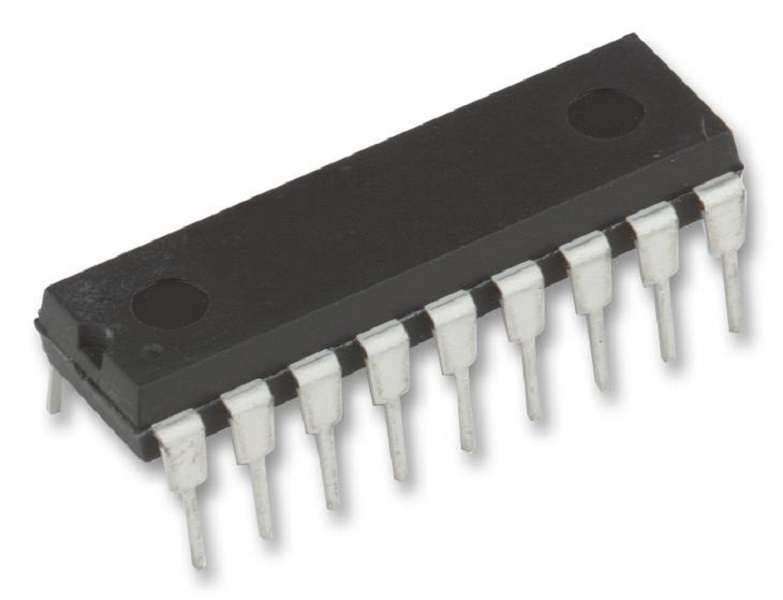

Microchip (PIC16F54-I/P) 8 Bit MCU, Flash, 20 MHz, 768 Byte, 18 Pins, DIP

8 Bit MCU, Flash, PIC16 Family PIC16F5XX Series Microcontrollers, 20 MHz, 768Byte, 18 Pins, DIPProduct OverviewThe PIC16F54-I/P is a 8-bit fully-static Flash-based CMOS Microcontroller forhigh-speed automotive and appliance motor control to low-power remotetransmitters/receivers. It employs a RISC architecture with only 33single-word/single-cycle instructions. All instructions are single cycle exceptfor program branches which take two cycles. The PIC16F5X delivers performance anorder of magnitude higher than its competitors in the same price category. The12-bit wide instructions are highly symmetrical resulting in 2:1 codecompression over other 8-bit microcontrollers in its class. The easy-to-use andeasy-to-remember instruction set reduces development time significantly. ThePower-on Reset (POR) and Device Reset Timer (DRT) eliminate the need forexternal reset circuitry. The PIC16F5X products are supported by a full-featuredmacro assembler, a software simulator, a development programmer and a fullfeatured programmer.Baseline core with 33 instructions and 2 stack levelsAll single-cycle instructions except for program branches which are two cycles25mA Source/sink current I/OLow power (100nA) sleep currentOne 8-bit timer (TMR0)Watchdog timer (WDT)In-Circuit Serial Programming (ICSP) capabilityIn-Circuit Debugging supportProgrammable code protectionApplicationsAutomotive, Industrial, Consumer Electronics, Motor Drive & ControlProduct InformationProduct Range: PIC16 Family PIC16F5XX Series MicrocontrollersCPU Speed: 20MHzProgram Memory Size: 768ByteOperating Frequency Max: 20MHzRAM Memory Size: 25ByteNo. of Pins: 18PinsMCU Case Style: DIPIC Case / Package: DIPNo. of I/O's: 12I/O'sSupply Voltage Min: 2VSupply Voltage Max: 5.5VMCU Family: PIC16MCU Series: PIC16F5xxOperating Temperature Min: -40°COperating Temperature Max: 85°CIC Mounting: Through HoleQualification: AEC-Q100Automotive Qualification Standard: AEC-Q100
