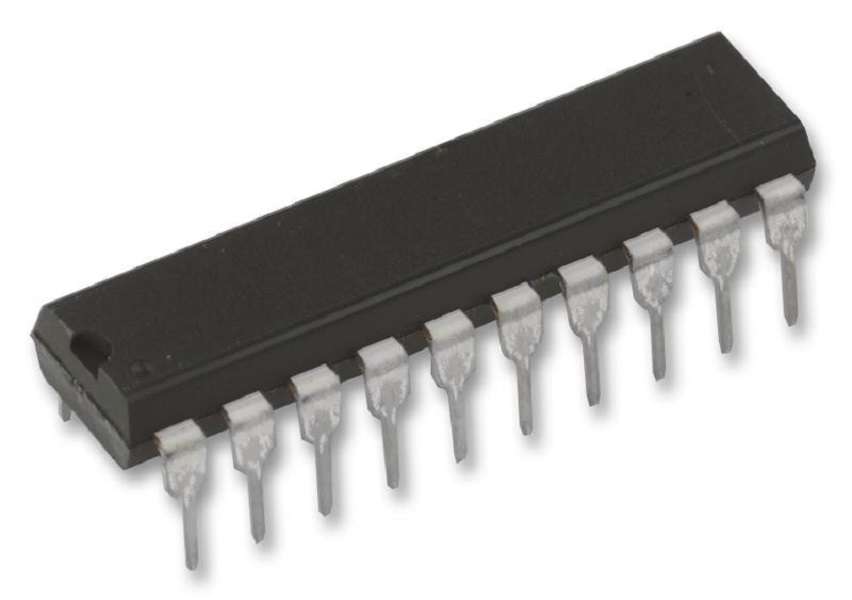

Microchip (PIC16F690-I/P) 8 Bit MCU, Flash, 20 MHz, 7 KB, 20 Pins, DIP

8 Bit MCU, Flash, PIC16 Family PIC16F6XX Series Microcontrollers, 20 MHz, 7 KB,20 Pins, DIPProduct OverviewThe PIC16F690-I/P is a 8-bit Flash-based CMOS Microcontroller with nanoWatttechnology. The low pin-count (20) PIC® flash microcontroller offers all of theadvantages of the well recognized mid-range x14 architecture with standardizedfeatures including a wide operating voltage of 2.0 to 5.5V and on-board EEPROMdata memory. Standard analogue peripherals include up to 12 channels of 10-bitA/D, an analogue comparator module with two comparators, programmable on-chipvoltage reference and an enhanced capture/compare/PWM (ECCP+) with dead banddelay, auto-shutdown and restart options.MPLAB® ICD 2 programming support or debugging support with optional headeradapterSoftware selectable BOREUSART LIN 2.0 compatibleECCP+ with PWM steeringEnhanced low power timer 1Timer 1 gate synch latchPower-saving sleep modePower-on reset (POR)Power-up timer (PWRT) and oscillator start-up timer (OST)Enhanced low-current watchdog timer (WDT) with on-chip oscillatorMultiplexed master clear/input pinProgrammable code protection-40 to +85°C Temperature range (industrial)ApplicationsIndustrial, AutomotiveProduct InformationProduct Range: PIC16 Family PIC16F6XX Series MicrocontrollersCPU Speed: 20MHzProgram Memory Size: 7KBOperating Frequency Max: 20MHzRAM Memory Size: 256ByteNo. of Pins: 20PinsMCU Case Style: DIPIC Case / Package: DIPNo. of I/O's: 18I/O'sEmbedded Interface Type: AUSART, I2C, SPIInterfaces: AUSART, I2C, SPISupply Voltage Min: 2VSupply Voltage Max: 5.5VMCU Family: PIC16MCU Series: PIC16F6xxOperating Temperature Min: -40°COperating Temperature Max: 85°CQualification: AEC-Q100Automotive Qualification Standard: AEC-Q100
