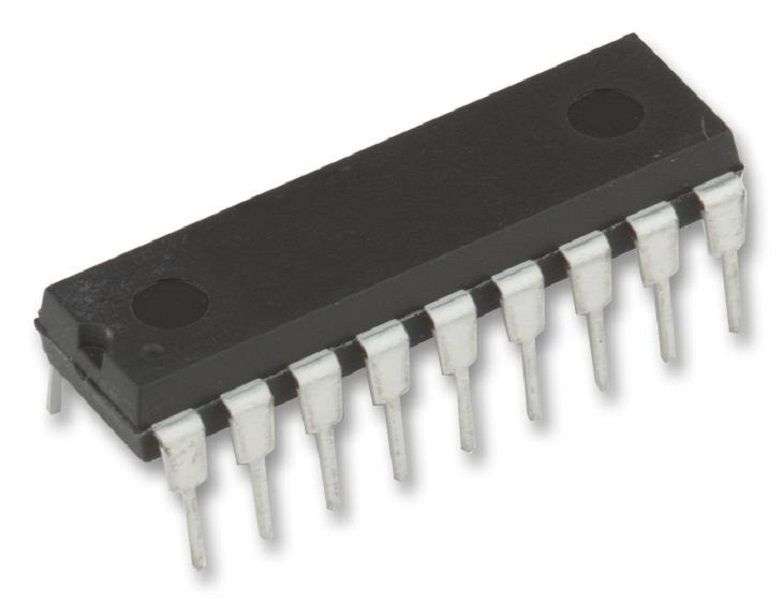

Microchip (PIC16F716-I/P) 8 Bit MCU, Flash, 20 MHz, 3.5 KB, 18 Pins, DIP

8 Bit MCU, Flash, PIC16 Family PIC16F7XX Series Microcontrollers, 20 MHz, 3.5KB, 18 Pins, DIPProduct OverviewThe PIC16F716-I/P is a 8-bit Flash-based Microcontroller. This powerful (200nanosecond instruction execution) yet easy-to-program (only 35 single wordinstructions) CMOS flash-based microcontroller is upwards compatible with thePIC16C5X and PIC12FXXX devices. The PIC16F716 features 4 channels of 8-bitAnalogue-to-digital (A/D) converter with 2 additional timers and a enhancedcapture/compare/PWM function. The Analogue-to-digital Converter (ADC) allowsconversion of an analogue input signal to a 8-bit binary representation of thatsignal. This device uses analogue inputs, which are multiplexed into a singlesample and hold circuit. The output of the sample and hold is connected to theinput of the converter. The converter generates a 8-bit binary result viasuccessive approximation and stores the conversion result into the ADC resultregister (ADRES).High-performance RISC CPUPower-on reset (POR)Power-up timer (PWRT) and oscillator start-up timer (OST)Watchdog timer (WDT) with its own on-chip RC oscillator for reliable operationProgrammable code protectionPower-saving sleep modeFully static designIn-Circuit Serial Programming (ICSP) capability-40 to +85°C Temperature range (industrial)ApplicationsAutomotive, Industrial, Consumer ElectronicsProduct InformationProduct Range: PIC16 Family PIC16F7XX Series MicrocontrollersCPU Speed: 20MHzProgram Memory Size: 3.5KBOperating Frequency Max: 20MHzRAM Memory Size: 128ByteNo. of Pins: 18PinsMCU Case Style: DIPIC Case / Package: DIPNo. of I/O's: 13I/O'sSupply Voltage Min: 2VSupply Voltage Max: 5.5VMCU Family: PIC16MCU Series: PIC16F7xxOperating Temperature Min: -40°COperating Temperature Max: 85°CQualification: AEC-Q100Automotive Qualification Standard: AEC-Q100
