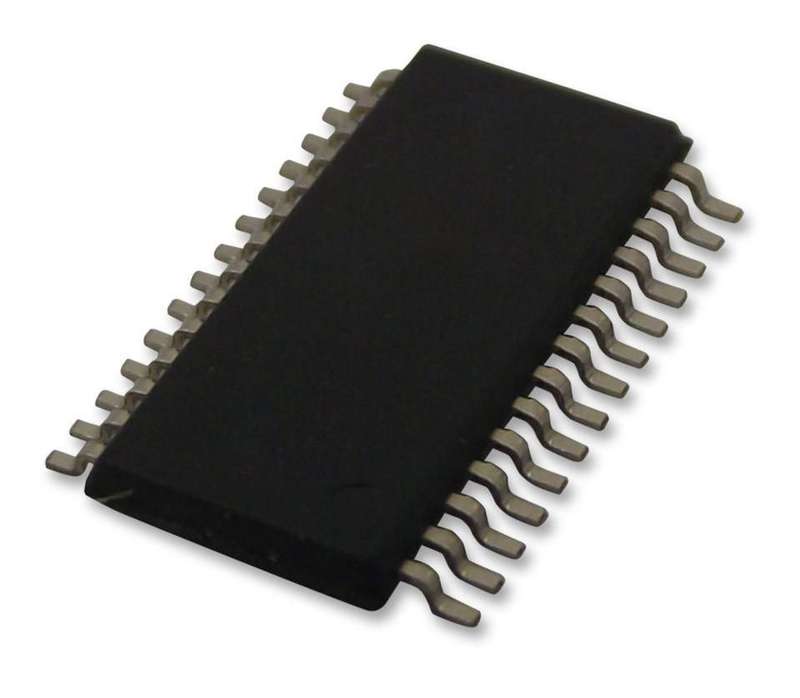

Microchip (PIC16F886-I/SS) 8 Bit MCU, Flash, 20 MHz, 14 KB, 28 Pins, SSOP

8 Bit MCU, Flash, PIC16 Family PIC16F8XX Series Microcontrollers, 20 MHz, 14 KB,28 Pins, SSOPProduct OverviewThe PIC16F886-I/SS is a 8-bit CMOS Flash-based Microcontroller. The PIC16F886features 256 bytes of EEPROM data memory, self programming, an ICD, 2comparators, 11 channels of 10-bit Analogue-to-digital (A/D) converter, 1capture/compare/PWM and 1 Enhanced capture/compare/PWM functions, a synchronousserial port that can be configured as either 3-wire Serial Peripheral Interface(SPI) or the 2-wire Inter-Integrated Circuit (I²C) bus and an EnhancedUniversal Asynchronous Receiver Transmitter (EUSART). The PIC16F886 devices havetwo timers that offer necessary delays on power-up. One is the OscillatorStart-up Timer (OST), intended to keep the chip in reset until the crystaloscillator is stable. The other is the Power-up Timer (PWRT), which provides afixed delay of 64ms (nominal) on power-up only, designed to keep the part inreset while the power supply stabilizes.High-performance RISC CPUPower-saving sleep modePower-on reset (POR)Extended watchdog timer (WDT) with its own on-chip RC oscillator for reliableoperationIn-Circuit Serial Programming (ICSP) via two pinsIn-Circuit Debug (ICD) via two pinsSelf-reprogrammable under software controlProgrammable code protectionEnhanced capture/compare/PWM (ECCP) module with auto-shutdown and PWM steeringMultiplexed master clear with pull-up/input pinSupplier's original packaging: TubeApplicationsAutomotive, Industrial, Consumer ElectronicsProduct InformationProduct Range: PIC16 Family PIC16F8XX Series MicrocontrollersCPU Speed: 20MHzProgram Memory Size: 14KBOperating Frequency Max: 20MHzRAM Memory Size: 368ByteNo. of Pins: 28PinsMCU Case Style: SSOPIC Case / Package: SSOPNo. of I/O's: 24I/O'sEmbedded Interface Type: EUSARTInterfaces: EUSARTSupply Voltage Min: 2VSupply Voltage Max: 5.5VMCU Family: PIC16MCU Series: PIC16F8xxOperating Temperature Min: -40°COperating Temperature Max: 85°CIC Mounting: Surface MountQualification: AEC-Q100Automotive Qualification Standard: AEC-Q100MSL: MSL 1 - Unlimited
