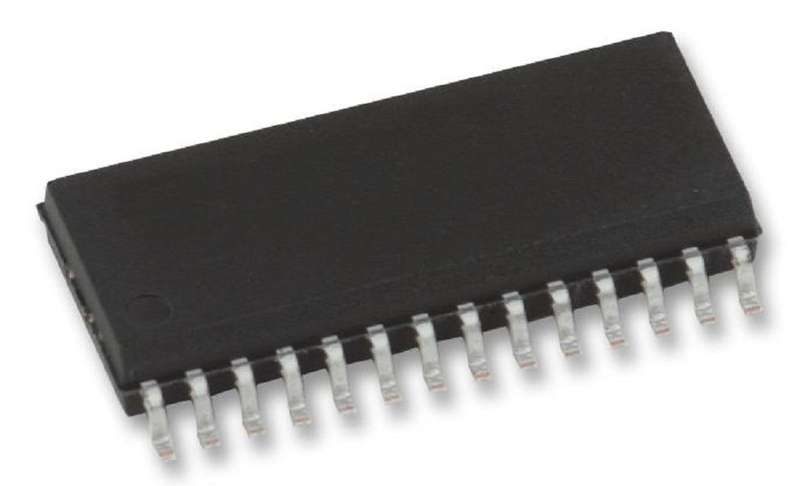

Microchip (PIC18F2550-I/SO) 8 Bit MCU, Flash, 48 MHz, 32 KB, 28 Pins, SOIC

8 Bit MCU, Flash, PIC18 Family PIC18F25xx Series Microcontrollers, 48 MHz, 32KB, 28 Pins, SOICProduct OverviewThe PIC18F2550-I/SO is a high-performance enhanced flash USB Microcontrollerwith nanoWatt technology. Ideal for low power (nanoWatt) and connectivityapplications that benefit from the availability of three serial ports ofFS-USB(12Mbps), I²C and SPI (up to 10Mbps) and an asynchronous (LIN capable)serial port (EUSART). Large amounts of RAM memory for buffering and enhancedflash program memory make it ideal for embedded control and monitoringapplications that require periodic connection with a (legacy free) personalcomputer via USB for data upload/download or firmware updates. While operatingup to 48MHz, the PIC18F2550 is also mostly software and hardware compatible withthe PIC16C745 low-speed USB OTP devices. THE PICSTART® Plus does not currentlysupport this device but may support it in the future. The PIC18F2550 familyintroduces design enhancements that make this microcontroller a logical choicefor many high-performance and power sensitive applications.Low speed (1.5Mbps) and full speed (12Mbps)Supports control, interrupt, isochronous and bulk transfersSupports up to 32 endpoints (16 bidirectional)1kB Dual access RAM for USBOn-chip USB transceiver with on-chip voltage regulatorPower-managed mode - Two-speed oscillator start-upFlexible oscillator structure - Four crystal modes, including high-precision PLLfor USBPeripheral - Enhanced USART module and enhanced capture/compare/PWM (ECCP)moduleFlash/data EEPROM retention of >40 yearsSelf-programmable under software control8 x 8 Single-cycle hardware multiplierIn-Circuit Debug (ICD) via two pinsSupplier's original packaging: TubeApplicationsComputers & Computer Peripherals, Industrial, Power Management, Embedded Design& Development, Automation & Process Control, System MonitoringProduct InformationProduct Range: PIC18 Family PIC18F25xx Series MicrocontrollersOperating Frequency Max: 48MHzRAM Memory Size: 2KBNo. of Pins: 28PinsMCU Case Style: SOICIC Case / Package: SOICNo. of I/O's: 24I/O'sEmbedded Interface Type: EUSART, I2C, SPI, USBInterfaces: EUSART, I2C, SPI, USBSupply Voltage Min: 4.2VSupply Voltage Max: 5.5VMCU Family: PIC18MCU Series: PIC18F25xxOperating Temperature Min: -40°COperating Temperature Max: 85°CQualification: -MSL: MSL 1 - Unlimited
