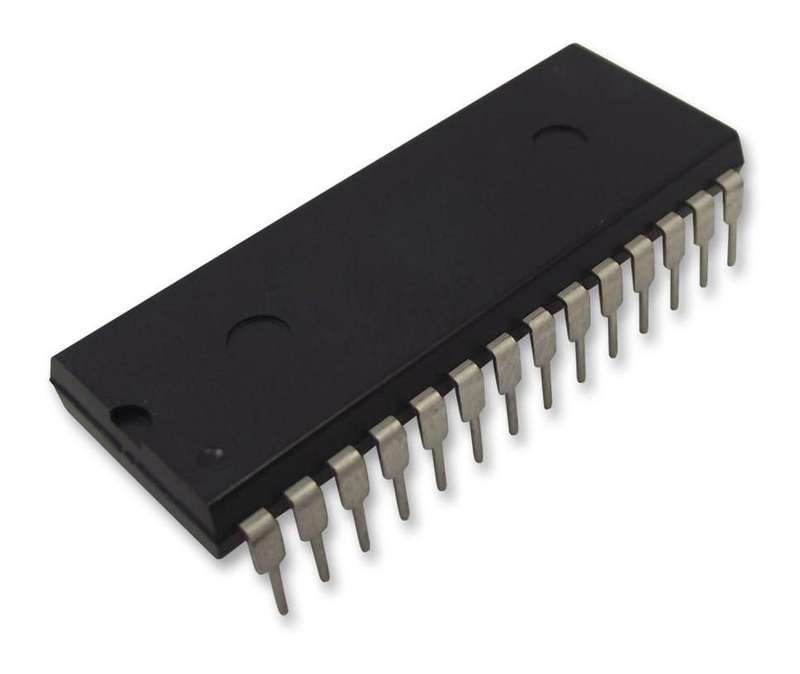

Microcontroller PIC/DSPIC, PIC32 Family PIC32MX Series, 32bit, 50MHz, 256KB,64KB RAM, SDIP-28Product OverviewThe PIC32MX170F256B-50I/SP is a 32-bit 256kB Flash Microcontroller featuresaudio and graphics interfaces, USB and advanced analogue. The CPU fetchesinstructions, decodes each instruction, fetches source operands, executes eachinstruction and writes the results of instruction execution to the destinations.The MIPS32 M4K processor core contains several logic blocks working together inparallel, providing an efficient high-performance computing engine. The MIPS M4Kprocessor core offers many power management features, including low-powerdesign, active power management and power-down modes of operation. The core is astatic design that supports slowing or Halting the clocks, which reduces systempower consumption during idle periods.Two I²S/SPI modules for Codec and serial communicationsPeripherals - Peripheral pin select (PPS) functionalityParallel master port (PMP) for graphics interfacesCharge time measurement unit (CTMU) - Supports mTouchcapacitive touch buttonsand sliders1.65 DMIPS/MHz (Dhrystone 2.1) performanceMIPS32M4K core with MIPS16e mode for up to 40% smaller code sizePin-compatible with most Microchip 16-bit devicesMultiple power management modesConfigurable WDT with on-chip low-power RC oscillator for reliable operationPeripheral - Up to 4 channels of hardware DMA with automatic data size detectionAudio interface - IS, LJ, RJ and DSP modes data communication, SPI and ICcontrol interfaceAnalogue - Up to 13-channel, 10-bit ADC and three analogue comparatorsDebug - Four programming and debugging interfacesApplicationsComputers & Computer Peripherals, Industrial, Audio, Consumer ElectronicsProduct InformationProduct Range: PIC32 Family PIC32MX Series MicrocontrollersDevice Core: PIC32 MXNo. of Bits: 32bitData Bus Width: 32bitOperating Frequency Max: 50MHzCPU Speed: 50MHzProgram Memory Size: 256KBRAM Memory Size: 64KBIC Case / Package: SDIPNo. of Pins: 28PinsMCU Case Style: SDIPInterfaces: I2C, I2S, SPI, UARTEmbedded Interface Type: I2C, I2S, SPI, UARTSupply Voltage Min: 2.3VSupply Voltage Max: 3.6VMCU Family: PIC32MCU Series: PIC32MXMSL: MSL 1 - Unlimited
