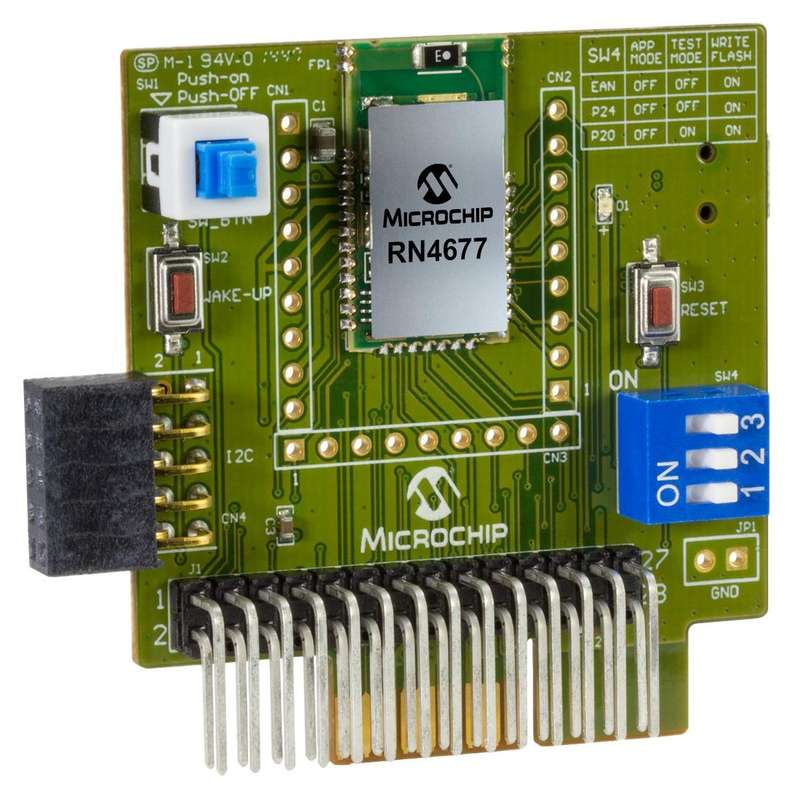

Microchip (RN-4677-PICTAIL) Daughter Board, PICtail/PICtail Plus

Product InformationSilicon Manufacturer: MicrochipCore Architecture: -Core Sub-Architecture: -Silicon Core Number: RN4677Silicon Family Name: -For Use With: Microchip PIC18 Explorer & Explorer 16 Development, PIC32 I/OExpansion BoardsKit Contents: Daughter Board with RN4677 Bluetooth Module, Mini-USB CableProduct Range: -Product OverviewThe RN-4677-PICTAIL is a Bluetooth dual mode Demonstration Board using theRN4677 Bluetooth dual mode OEM module. The RN4677 module is a dual modeBluetooth module that complies with Bluetooth core specification 4.0. The RN4677is interfaced using a simple command interface over the UART. Out of the box,this versatile board utilizes it is built in USB-to-serial capability tocommunicate with the on-board RN4677. When plugged in to a PC, the board willenumerate as communication device class (CDC) serial device. Through a terminalprogram, user can configure and control the module and transfer data using theeasy to use provided command set. As a PICtail/PICtail plus, the board can beplugged into explorer16 (DM240001), the XLP 16-bit development board (DM240311)or the PIC32 starter kit I/O expansion board (DM320002). Users can then developfirmware on the host MCU of their choice interfaced directly over UART to theRN4677 via the PICtail or PICtail Plus interface.ApplicationsTest & Measurement, Industrial
