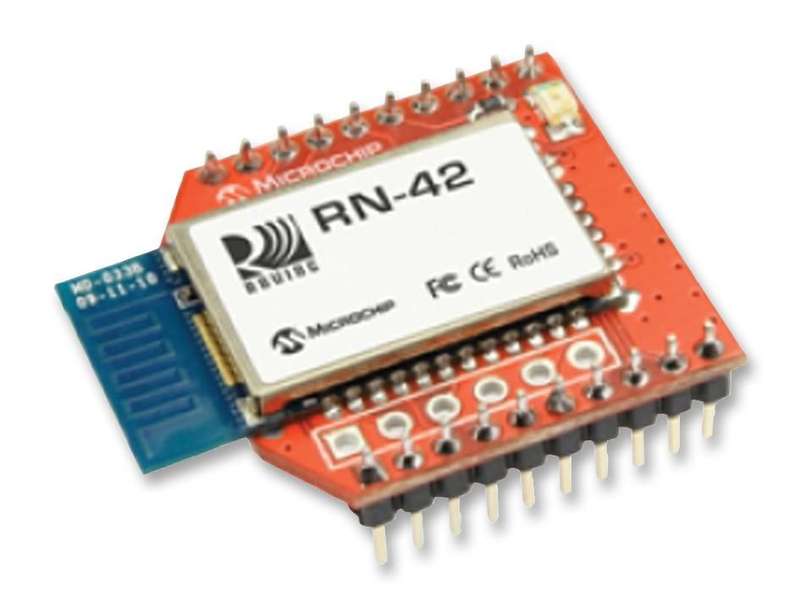

Microchip (RN42XVP-I/RM) RN 42 Series Class 2 Bluetooth module

RN 42 Series Class 2 Bluetooth module with PCB AntennaProduct OverviewThe RN42XVP-I/RM is a small form factor, low-power Bluetooth radio moduleoffering plug-in compatibility for the widely used 2 x 10 (2-mm) sockettypically used by 802.15.4 radio modules. The RN4XVP-I/RM provides Bluetoothconnectivity in legacy and existing designs that may have been based upon the802.15.4 standard. This module is simple to design in and is fully certified,making it a complete embedded Bluetooth solution.Fully qualified Bluetooth® version 2.1 Class 2Backwards-compatible with Bluetooth version 2.0, 1.2, and 1.1UART data connection interfaceSupports secure simple pairing (SPP)ApplicationsCommunications & Networking, Consumer Electronics, RF Communications, Sensing &Instrumentation, WirelessProduct InformationBluetooth Version: Bluetooth 2.1 + EDRSupply Voltage Min: 3VSupply Voltage Max: 3.6VSignal Range Max: 20mData Rate: 3MbpsBluetooth Class: Class 2Receive Sensitivity: -80dBmOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: -
