Microchip (TC4428AEPA) MOSFET Driver, Low Side, 4.5V-18V supply

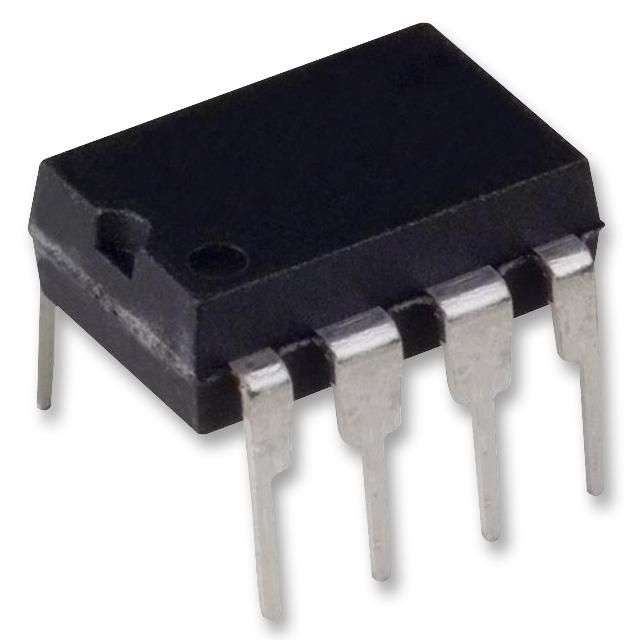

MOSFET Driver, Low Side, 4.5V-18V supply, 1.5A and 7 ohm output, DIP-8Product OverviewThe TC4428AEPA is a 1.5A dual complementary high-speed Power MOSFET Driver forpulse transformer drive. The TC4428A device has matched leading and falling edgepropagation delay times. The device is highly latch-up resistant under anyconditions within their power and voltage ratings. It is not subject to damagewhen up to 5V of noise spiking (of either polarity) occurs on the ground pin. Itcan accept, without damage or logic upset, up to 500mA of reverse current (ofeither polarity) being forced back into their outputs. All terminals are fullyprotected against Electrostatic Discharge (ESD) up to 2kV. The TC4428A MOSFETdriver can easily charge/discharge 1000pF gate capacitances in under 30ns. Thisdevice provides low enough impedances in both the on and off states to ensurethe MOSFET's intended state will not be affected, even by large transients.Matched rise, fall and delay times7R Low output impedance (typical)Input withstands negative inputs up to 5V2kV Electrostatic Discharge (ESD) protectedApplicationsPower Management, Signal Processing, AutomotiveProduct InformationNo. of Channels: 2ChannelsDriver Configuration: Low SidePower Switch Type: MOSFETSupply Voltage Min: 4.5VSupply Voltage Max: 18VDriver Case Style: DIPInput Type: Inverting, Non-InvertingIC Case / Package: DIPNo. of Pins: 8PinsSource Current: 1.5AInput Delay: 30nsOutput Delay: 30nsSink Current: 1.5AOperating Temperature Min: -40°COperating Temperature Max: 85°CQualification: AEC-Q100
