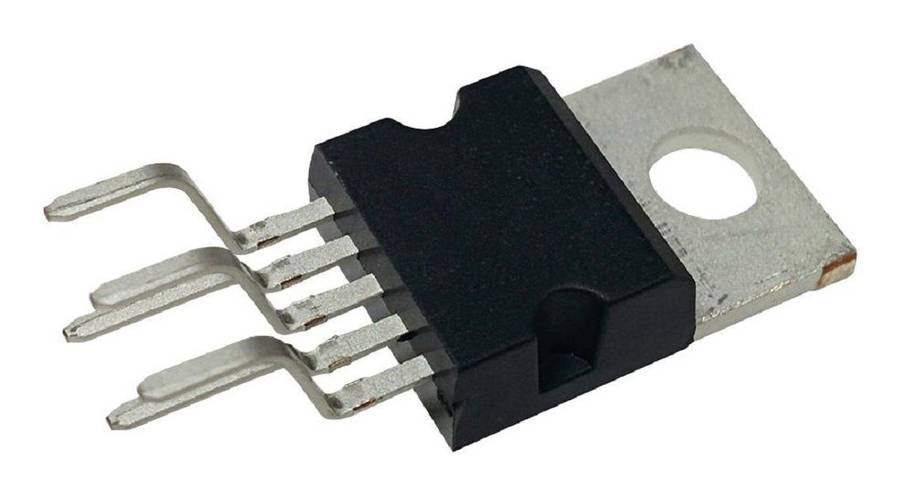

Microchip (TC74A5-5.0VAT) Temperature Sensor IC, Digital, ± 2°C, -40 °C

Temperature Sensor IC, Digital, ± 2°C, -40 °C, +125 °C, TO-220, 5 PinsProduct OverviewThe TC74A5-5.0VAT is a serially accessible Digital Temperature Sensorparticularly suited for in which, temperature data is converted from the onboardthermal sensing element and made available as an 8-bit digital word.Communication with the device is accomplished via a 2-wire SMBus/I²C compatibleserial port. This bus also can be used to implement multi-drop/multi-zonemonitoring. The SHDN bit in the CONFIG register can be used to activate the lowpower standby mode.8 Samples per second nominal conversion rate200µA (typical) Normal operation quiescent current5µA (typical) Standby operation, quiescent currentApplicationsSensing & Instrumentation, Computers & Computer Peripherals, Power Management,Thermal ManagementProduct InformationIC Output Type: DigitalSensing Accuracy Range: ± 2°CSensing Temperature Min: -40°CSensing Temperature Max: +125°CSensor Case Style: TO-220No. of Pins: 5PinsSupply Voltage Min: 2.7VSupply Voltage Max: 5.5VProduct Range: -
