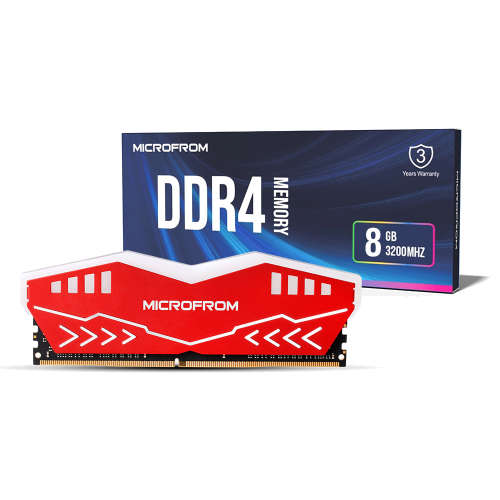

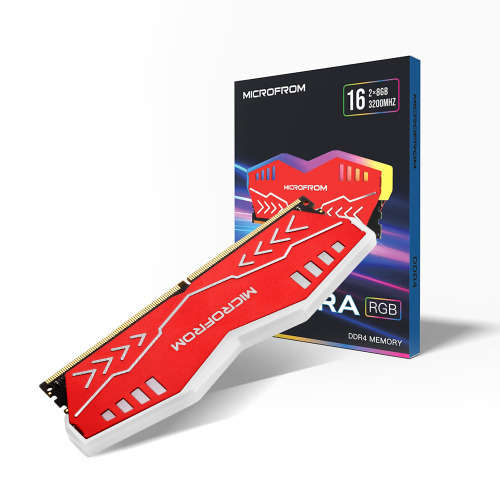

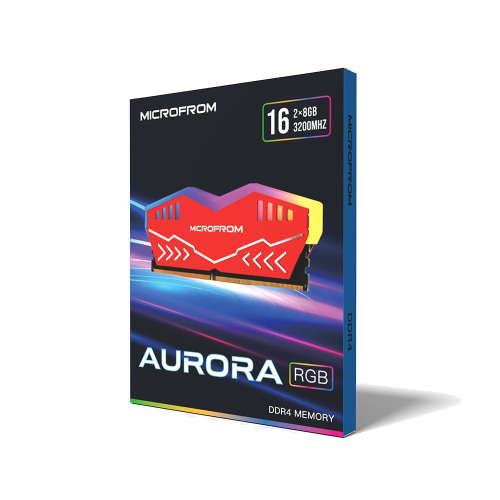

Microfrom Aurora 16GB DDR4 3200MHZ Gaming Ram Combo contains 2 x 8GB DDR4 3200MHz.
This high performance RAM for Gaming PCs features:
Heat sink to keep the RAM cool for optimal performance
High performance for high frame rate games
Compatible with all major brands of motherboards
Stable and durable
Dynamic RGB lighting, fully controlled by software and synchronized lighting with RGB products such as coolers, keyboards and fans
Specifications:
This 288-pin DIMM uses gold contact fingers and requires +1.2v power supply.
The DRAM is a dynamically independent addressable RGB light product. Fully controlled by software and synchronized lighting with RGB products such as coolers, keyboards and fans.
VDD=VDDQ=1.2V +/- 0.06V
Fully differential clock inputs (CK, CK) operation
Differential Data Strobe (DQS, DQS)
On chip DLL align DQ, DQS and DQS transition with CK transition
DM masks write data-in at both the rising and falling edges of the data strobe
All addresses and control inputs except data, data strobes and data masks is latched on the rising edges of the clock
Programmable CAS latency 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20 and 21 supported
Programmable additive latency 0, CL-1, and CL-2 supported (x4/x8 only)
Programmable CAS Write latency (CWL) = 10, 11, 12, 14, 16, 18, 20
Programmable burst length 4/8 with both nibble sequential and interleave mode
BL switch on the fly
16 banks
Average Refresh Cycle (Tcase of 0? ~ 85?)
JEDEC standard 78 ball FBGA(x4/x8)
Driver strength selected by MRS
Dynamic On Die Termination supported
Two Termination States such as RTTPARK and RTTNOM switchable by ODT pin
Asynchronous RESET pin supported
ZQ calibration supported
TDQS (Termination Data Strobe) supported (x8 only)
Write Levelization supported
8 bit pre-fetch
This product in compliance with the RoHS directive
Internal Vref DQ level generation is available
Write CRC is supported at all speed grades
Maximum Power Saving Mode is supported
TCAR(Temperature Controlled Auto Refresh) mode is supported
LP ASR (Low Power Auto Self Refresh) mode is supported
Fine Granularity Refresh is supported
Per DRAM Addressability is supported
Geardown Mode (1/2 rate, 1/4 rate) is supported
Programable Preamble for read and write is supported
Self Refresh Abort is supported
CA parity (Command/Address Parity) mode is supported
Bank Grouping is applied, and CAS to CAS latency (tCCDL, tCCDS) for the banks in the same or different bank group accesses are available
DBI (Data Bus Inversion) is supported (x8)
What's in the box
2 x Microfrom Aurora 8GB DDR4 3200MHz Gaming RAM
