Microscope Student Kit

Microscope Student Kit

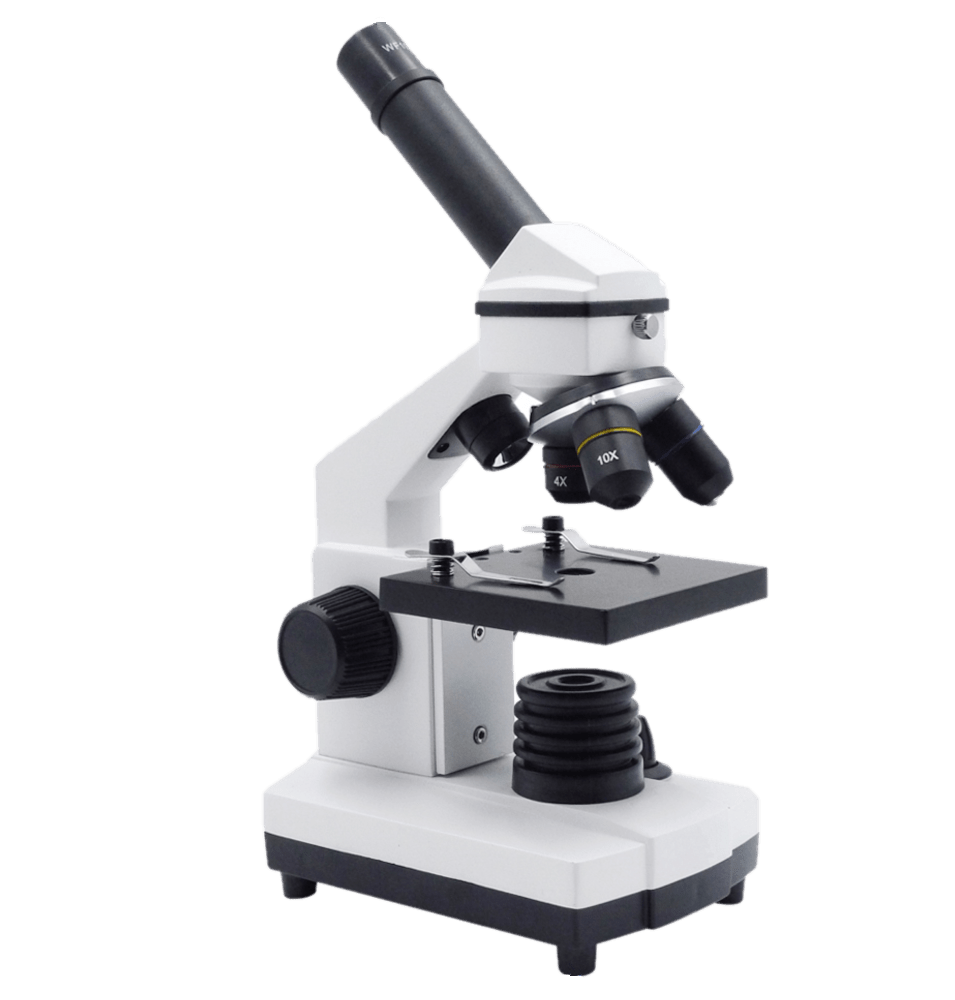

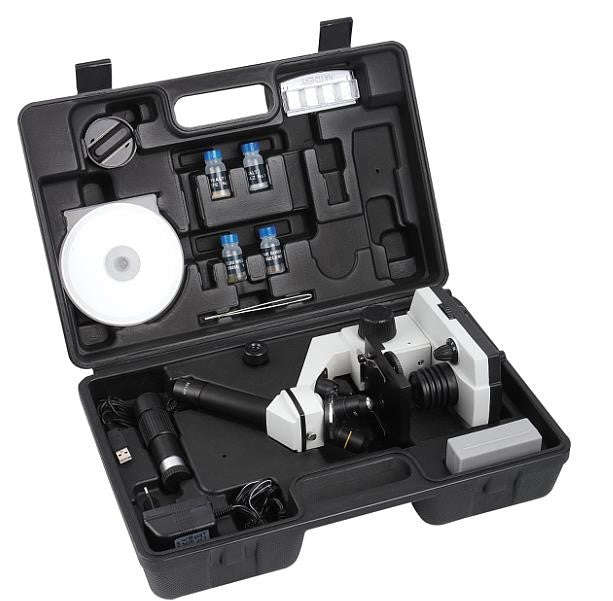

The microscope can magnify microscope slides up to 40x, 100x and 400x using the 10x eyepiece or 64x, 160x and 640x using the 16x eyepiece as supplied with the microscope and has two sources of light, one LED light on the base of the microscope and one LED light on the neck of the microscope. The microscope can be powered by ether an AC adapter that is included in the kit or three 1.5 V batteries (batteries not included) enabling the student to use the microscope in-the-field. The kit also includes a microscope camera that can be connected to a computer for capturing images or showing the slide to students through a digital projector. The kit includes a variety of basic equipment required to create your own slides as well as five pre-prepared slides in a slide box all supplied in a rugged plastic case. A must have for any student interested in microscopy.

Specifications

• Monocular 45 °
• Rotatable 360°
• Eyepieces:WF10x and WF-16x with Barlow Lens

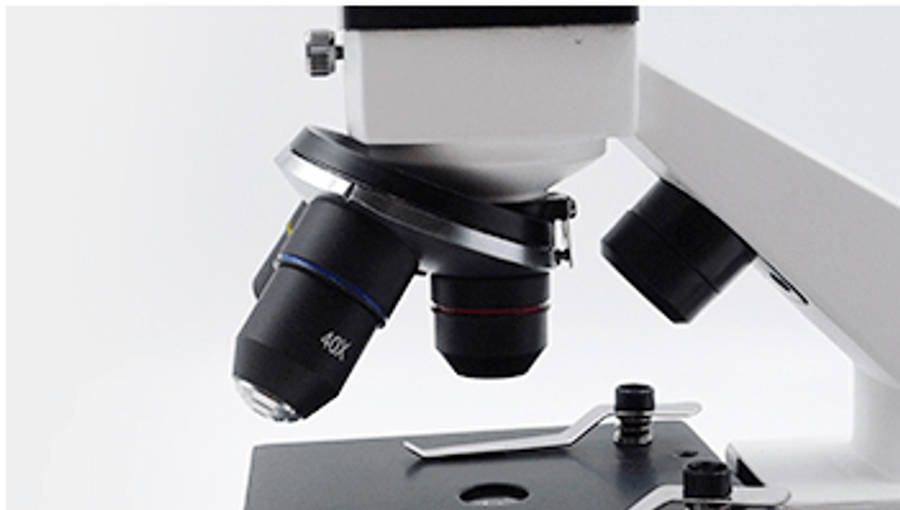

• Objectives:4X,10x,40x
• Total Magnification: 40x, 100x and 400x or 64x, 160x and 640x

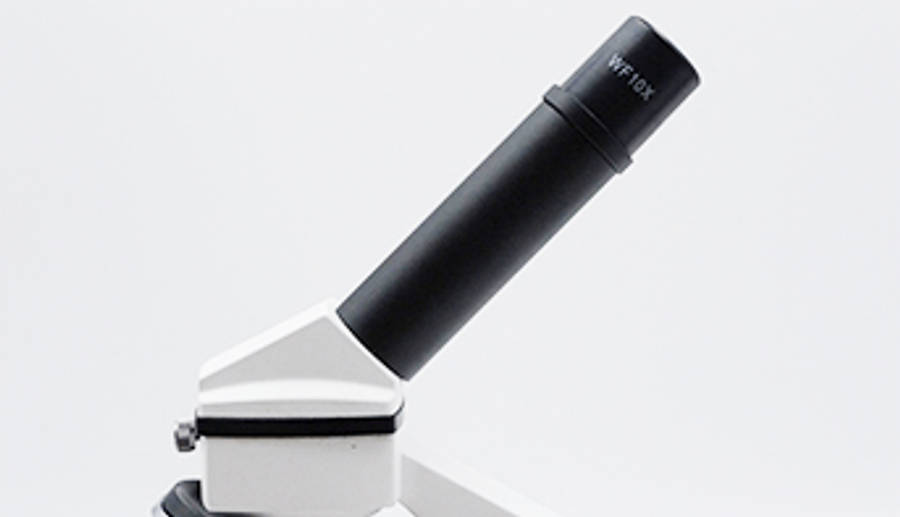

• Eyepiece Tube: Monocular 45°Inclined
• Tube Rotatable 360°
• Coarse Adjustment Range: 8mm

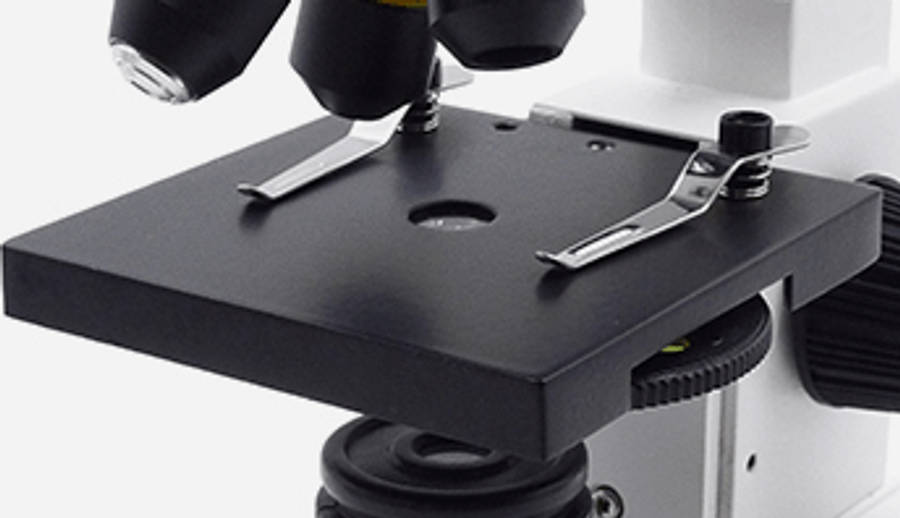

• Working Stage: 90mm x 90mm

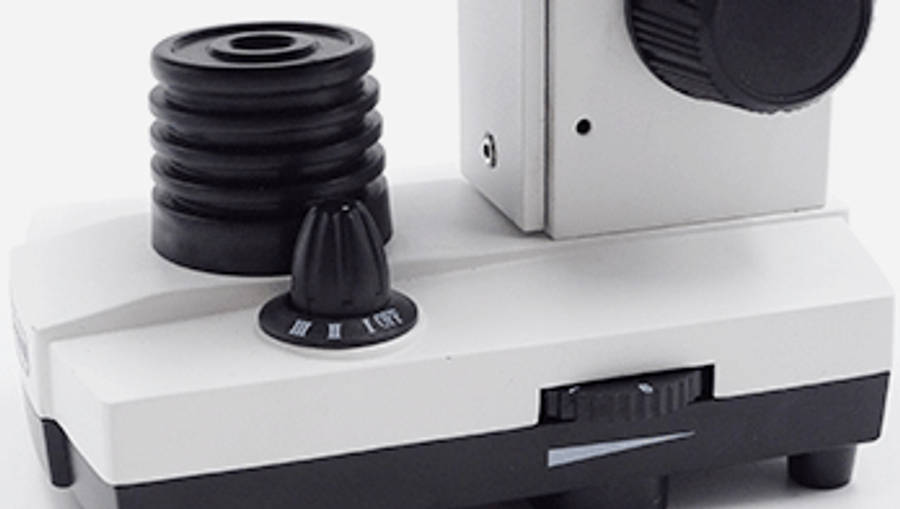

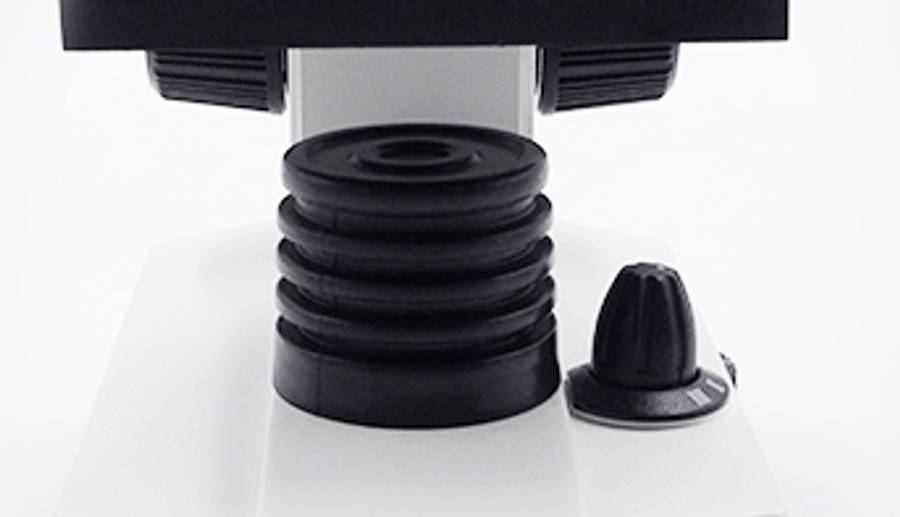

• Condenser: NA 0.65 Abbe condenser
• Illumination: LED lights Top and Bottom

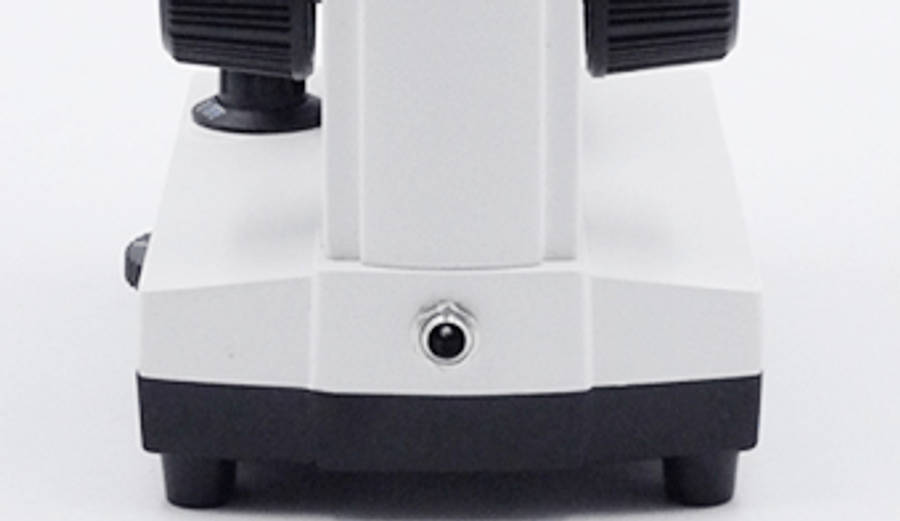

• Powered by 3 x 1.5V batteries or AC adapter

Accessories included:

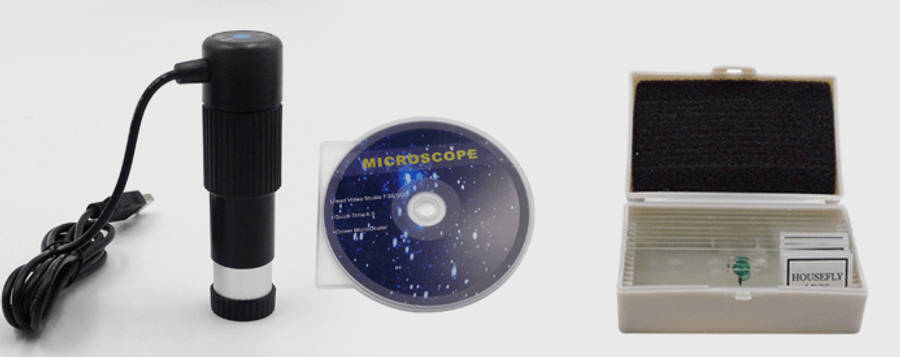

• MD10 digital eyepiece camera with software (cannot be used as document camera)
• Slides cutter
• Hatch case

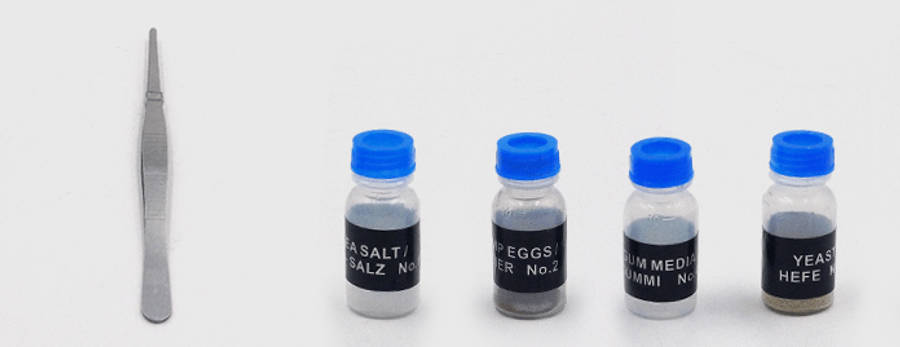

• Tweezers
• Sea salt one bottle
• Yeast one bottle
• Glue one bottle
• Bug ovum one bottle
• 5.5V AC adapter
• 5 pieces prepared slides, 5 pieces blank slides

** Please note due to popular demand, the set is now sold with both 10x and 16x eyepieces for multiple magnifications. Total Magnification: 40x, 100x and 400x using 10x eyepiece or 64x, 160x and 640x using 16x eyepiece
