Microtherm (T11A08005U112L310100) Thermostat Switch, Cut Out, T11A Series

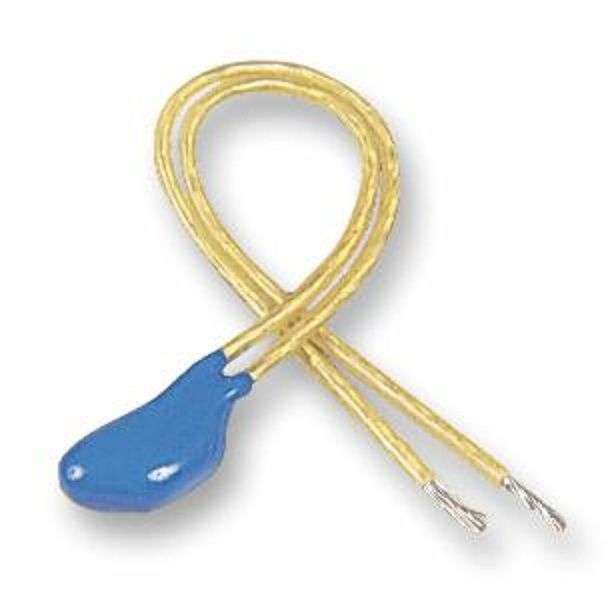

Thermostat Switch, Cut Out, T11A Series, 80 °C, Normally Closed, Wire LeadsProduct OverviewThe T11A08005U112L310100 is a Bimetal Thermal Switch is fully insulated with anepoxy coating. Sensor is of small dimension, high power rating and no vibrationnoise, plus excellent performance parameters means that this device is suitablefor a range of uses such as over-temperature protection, temperature control andthermal cut-out in such applications as motors, transformers and coils.Normally closed operation10000 Switching cycles50mR Contact resistance2kV Dielectric strengthApplicationsIndustrialProduct InformationSwitching Temperature: 80°CContact Operation: Normally ClosedSensor Terminals: Wire LeadsContact Rating: 250VAC/2.5AProduct Range: T11A Series
