Microworld CAT7 S/FTP Ethernet Cable 305M - 10Gbps Bare Copper for High-Speed Networking

CAT7 305MTR 10GBPS BARE COPPER - CAT7305M

CAT7 SFTP/ 23AWG/ 4P 0.57MM BARE COPPER PASS FLUKE TEST

Bare Copper is full Copper, Copper over 99.9%

Model: AXT7-T7

Features:

Complies with Category 7, ANSI/TIA/EIA 568B & ISO/IEC 11801 Standard
Supports transmission of digital and analogue voice, data and video signal
Products adopts shielding Aluminium Foil +Al-Ma Alloy Braid, able to reach a very good shielding effect.
Products adopt LSZH Jacket
Products can pass FLUKE test.
Rated Temperature: -20° to +70°

Application:

10G Base T (IEEE 802.3)
Fast Ethernet (IEEE 802.3u)
10Gvg-AnyLAN (IEEE 802.12)
Token Ring (IEEE 802.5)
TP-PMD (ANSI X3T9.5)
10G Mbps CDDI
ATM 10G Mbps

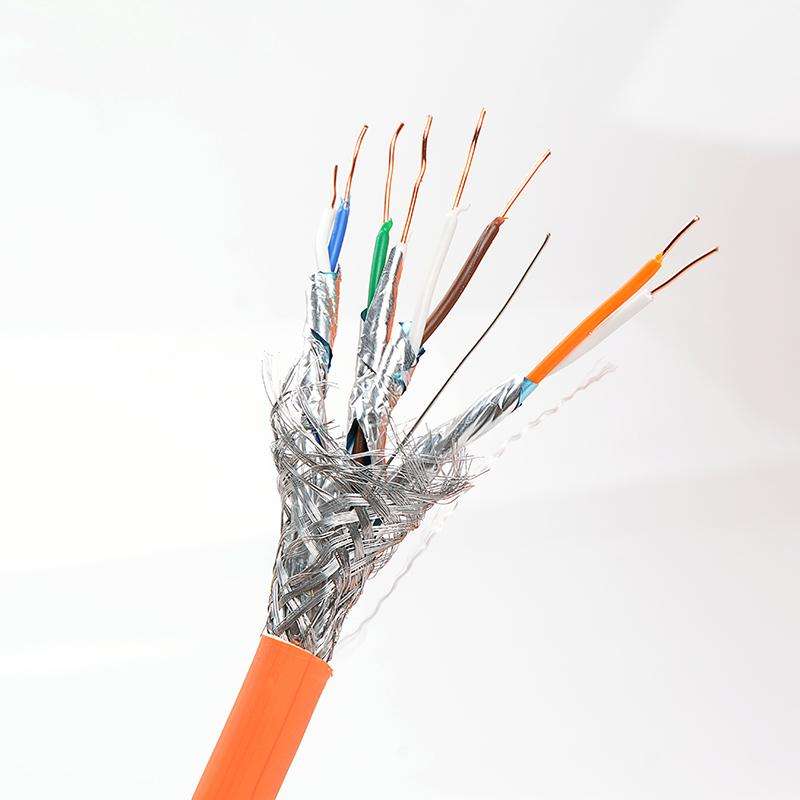

Cable Construction:

Inner conductor: Material: Pure Copper Fluke Test Passed
Diameter 0.57 ± 0.01mm (23AWG)
Material FPE

Insulation(Dielectric): Thickness = 0.25mm
Diameter 1.3 ± 0.03mm

Shielded Layer: First Layer: Aluminium Foil (Each Pair shield)
Second Layer Al-Ma Alloy Braid(16 x 6 x 0.12mm)

Drain wire: 0.40Tinned wire
Material LSZH

Outer Jacket: Thickness 0.6mm
Nominal O.D 7.60mm ± 0.20mm
Color Orange

Twisted pair: N/A

Pair 1 : Blue, White
Pair 2 : Orange, White
Pair 3 : Green, White
Pair 4 : Brown, White

1000ft/ 305m per Roller
