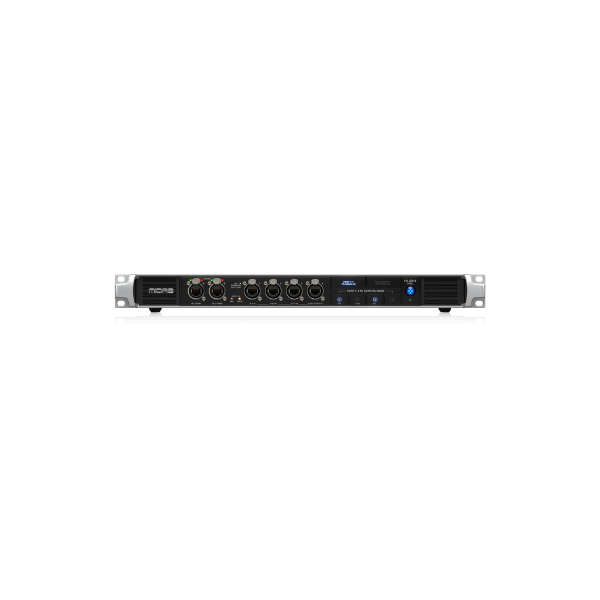

Midas HUB4-PRO

Personal monitoring system hub with PoE remote powering for 4 DP48 personal mixers and compatible stage boxes

AES50 IN and THRU ports for cascading hubs or stage boxes with 48 bidirectional channels at 48/44.1 kHz, or 2x 24 channels at 96 kHz

16 balanced analogue outputs providing 8 personal stereo mixes for IEM transmitters in a side rack

Channel naming and color properties can be distributed from compatible M32 or HD96 consoles

4 Midas DL8 stage boxes can be connected as sub-snakes on stage and powered from ports 1-4

Personal mix outputs can be monitored via AES50 upstream to connected consoles

Supports remote control forwarding of a DP48 personal master mixer to another DP48

Talkback signals from DP48 are summed and sent upstream/ downstream on Ch 48

Front panel buttons for sending personal mixes to analogue outputs, as well as for StageConnect and AES50-A upstream

StageConnect master output with phantom power for connecting with other StageConnect I/O units

StageConnect is sharing 32-channel audio, 24-Bit uncompressed PCM, 44.1/48 kHz, at sub-milisecond latency, over standard XLR or DMX cable (110- Ohm recommended)

Shielded CAT5e cable max. 250 ft / 80 m length recommended on all AES50 ports

Features industry standard RJ-45 AES50 network ports

Rugged 1U chassis for durability in portable applications

Auto-ranging universal switched-mode power supply
