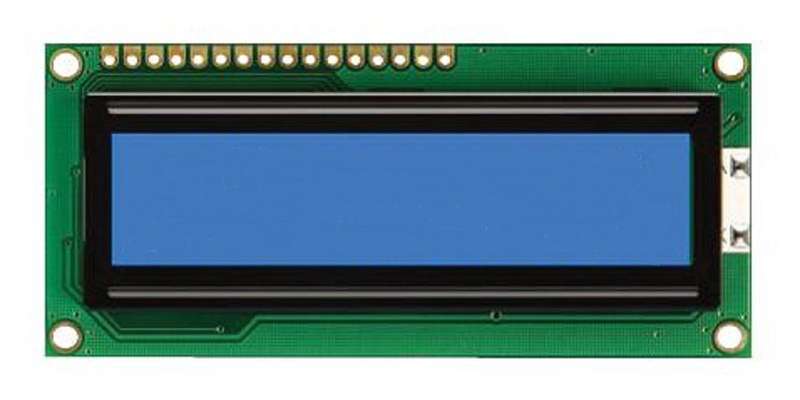

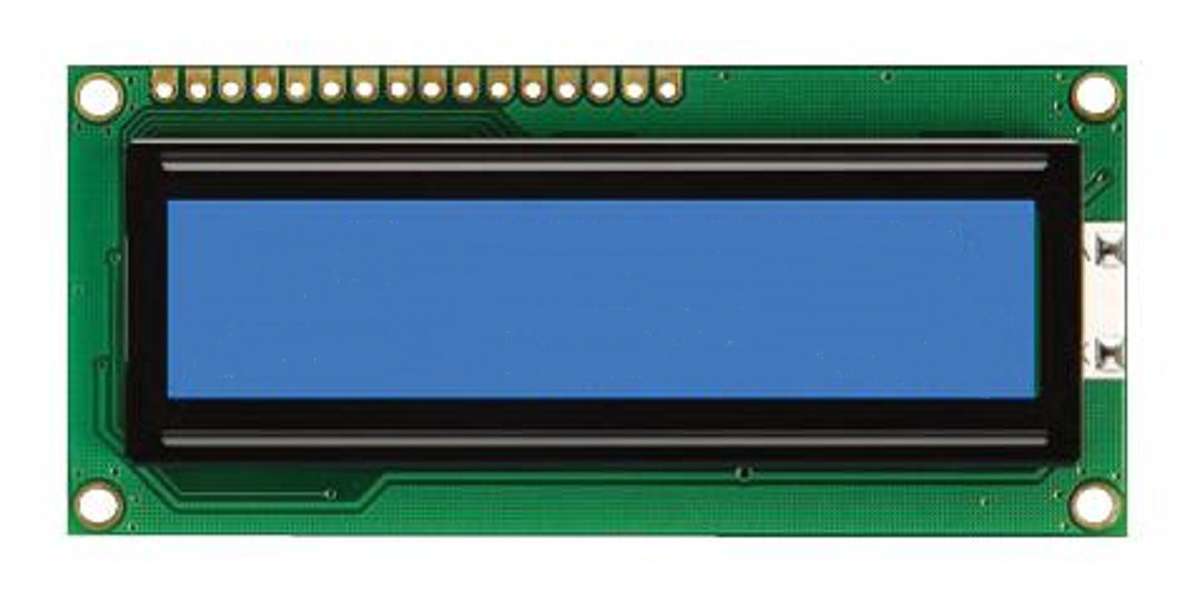

Midas (MC21605C6W-BNMLW-V2) Alphanumeric LCD, 16 x 2, White on Blue, 5V

Alphanumeric LCD, 16 x 2, White on Blue, 5V, Parallel, English, Japanese,TransmissiveProduct OverviewThe MC21605C6W-BNMLW-V2 from Midas is a chip on board LCD alphanumeric module.The overall size of module is 85mm x 36mm x 13.5mm (W x H x D), character sizeis 2.95mm x 4.35mm (W x H), character pitch is 0.51mm x 0.52mm (W x H).Typical input voltage is 5VSupply current is 1.4mA at Vdd = 5V16 character number per line & 2 character lineCharacter height is 5mmBlue transmissive STNLED white backlight6 "o" clock viewing directionSPLC780D controllerOperating temperature range from -20°C to 70°CDisplay duty 1/16, Driving bias 1/5White LED backlightPreferred view angle - 6 o'clock-20 to +70°C wide operating temperature range16 way through hole SIL (top left) connection, 2.54mm pitchApplicationsImaging, Video & VisionProduct InformationCharacter Count x Line: 16 x 2Display Appearance: White on BlueLogic Voltage: 5VInterface Type: ParallelFont Set: English, JapaneseDisplay Mode: TransmissiveCharacter Size: 4.35mmLCD Display Type: BSTNModule Size: 80mm x 36mmOperating Temperature Min: -20°COperating Temperature Max: 70°CDisplay Construction: COBBacklighting Colour: White
