Midas (MC21609A6W-GPTLY-V2) Alphanumeric LCD, 16 x 2, 5V, Parallel

Midas (MC21609A6W-GPTLY-V2) Alphanumeric LCD, 16 x 2, 5V, Parallel

New 193 available
R1,029.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
2675623
Bob Shop ID
645131692

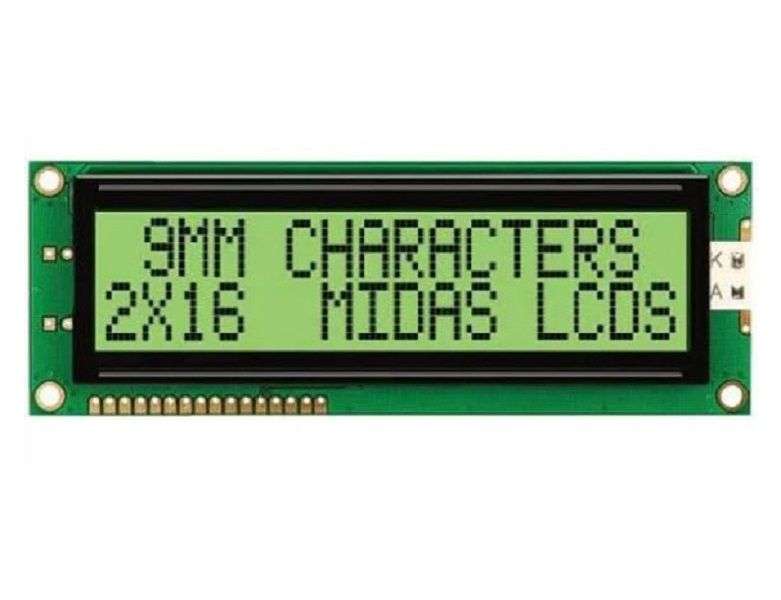

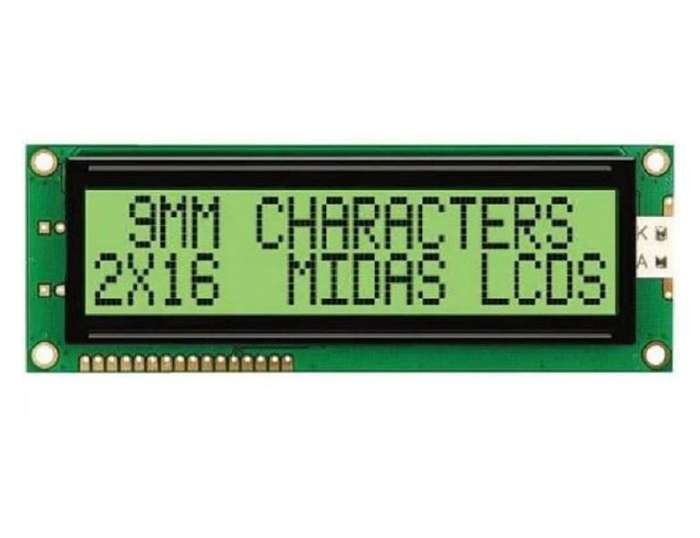

Product OverviewAlphanumeric / character LCD module2 lines of 16 characters - 2 x 16 also referred to as 16 x 2Positive mode grey STN materialAppearance - black characters on grey background (backlight off) or yellow/greenbackground (backlight on)Transflective technology, generally for both indoor and outdoor applicationsChip on board construction (COB) for easy mountingOn board controller SPLC780 or equivalent (HD44780 derivative)English/Japanese font sets5V logic supply, standard parallel interfaceDisplay duty 1/16, Driving bias 1/5Yellow/green LED backlightPreferred view angle - 6 o'clock-20 to +70°C wide operating temperature range16 way through hole SIL (bottom, left) connection, 2.54mm pitchProduct InformationCharacter Count x Line: 16 x 2Logic Voltage: 5VInterface Type: ParallelFont Set: English, JapaneseDisplay Mode: TransflectiveCharacter Size: 9.66mmLCD Display Type: STNModule Size: 122mm x 44mmOperating Temperature Min: -20°COperating Temperature Max: 70°CDisplay Construction: COBBacklighting Colour: Yellow / Green
