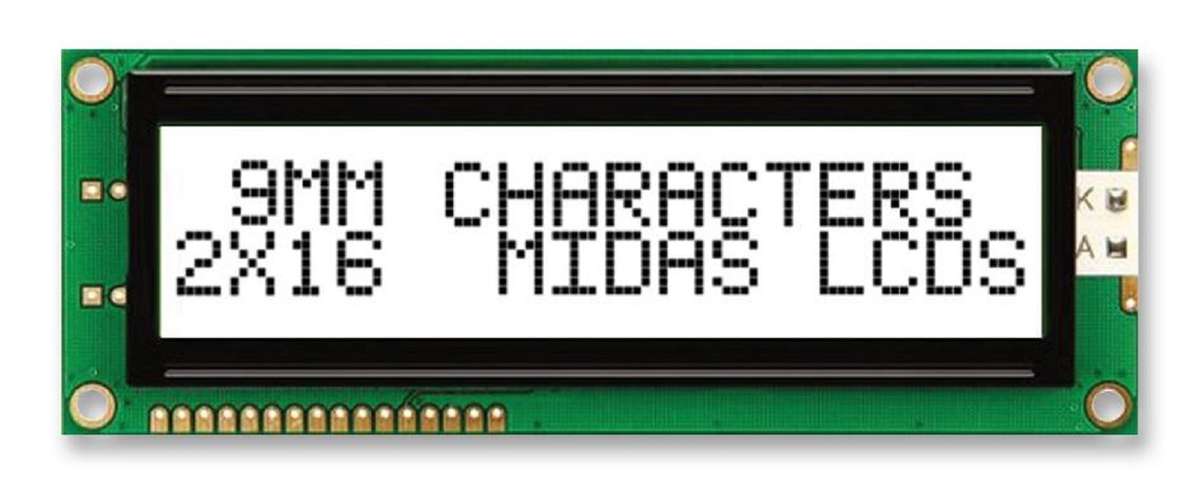

Midas (MC21609AB6W-FPTLW-V2) Alphanumeric LCD, 16 x 2, Black on White, 5V

Alphanumeric LCD, 16 x 2, Black on White, 5V, Parallel, English, Japanese,TransflectiveProduct OverviewThe MC21609AB6W-FPTLW-V2 from Midas is a chip on board LCD alphanumeric module.The overall size of module is 122mm x 44mm x 13.5mm (W x H x D), character sizeis 4.84mm x 9.66mm (W x H), character pitch is 1.16mm x 0.68mm (W x H).Typical input voltage is 5VSupply current is 1.5mA at Vdd = 5V16 character number per line & 2 character lineCharacter height is 9mmFSTN transflective STNLED white backlight6 "o" clock viewing directionSPLC780D controllerOperating temperature range from -20°C to 70°CDisplay duty 1/16, Driving bias 1/5White LED backlightPreferred view angle - 6 o'clock-20 to +70°C wide operating temperature range16 way through hole SIL (bottom left) connection, 2.54mm pitchApplicationsImaging, Video & VisionProduct InformationCharacter Count x Line: 16 x 2Display Appearance: Black on WhiteLogic Voltage: 5VInterface Type: ParallelFont Set: English, JapaneseDisplay Mode: TransflectiveCharacter Size: 9.66mmLCD Display Type: FSTNModule Size: 122mm x 44mmOperating Temperature Min: -20°COperating Temperature Max: 70°CDisplay Construction: COBBacklighting Colour: White
