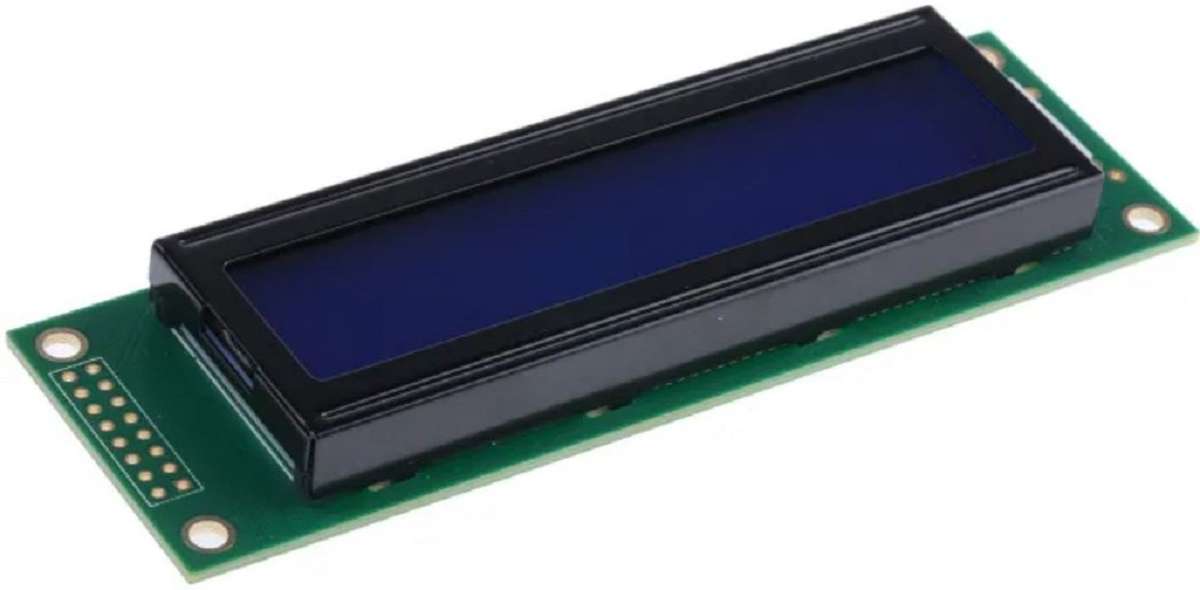

Alphanumeric LCD, 20 x 2, White on Blue, 5V, Parallel, English, Japanese,TransmissiveProduct OverviewThe MC22005A6W-BNMLW-V2 from Midas is a chip on board LCD alphanumeric module.The overall size of module is 116mm x 37mm x 13.5mm (W x H x D), character sizeis 5.55mm x 3.2mm (W x H), character pitch is 0.5mm x 0.8mm (W x H).Input voltage range from 4.7V to 5.5VSupply current is 1.5mA at Vdd = 5V20 character number per line & 2 character lineCharacter height is 5mmBlue transmissive STNLED white backlight6 "o" clock viewing directionSPLC780D controllerOperating temperature range from -20°C to 70°CDisplay duty 1/16, Driving bias 1/5White LED backlightPreferred view angle - 6 o'clock-20 to +70°C wide operating temperature range16 way through hole DIL (side, left, 2x8) connection, 2.54mm pitchApplicationsImaging, Video & VisionProduct InformationCharacter Count x Line: 20 x 2Display Appearance: White on BlueLogic Voltage: 5VInterface Type: ParallelFont Set: English, JapaneseDisplay Mode: TransmissiveCharacter Size: 5.55mmLCD Display Type: BSTNModule Size: 116mm x 37mmOperating Temperature Min: -20°COperating Temperature Max: 70°CDisplay Construction: COBBacklighting Colour: White
