Midas (MC42005A6W-BNMLW-V2) Alphanumeric LCD, White on Blue, 5V
Closed

Midas (MC42005A6W-BNMLW-V2) Alphanumeric LCD, White on Blue, 5V

New 91 were available
R1,195.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
2675679
Bob Shop ID
645131687

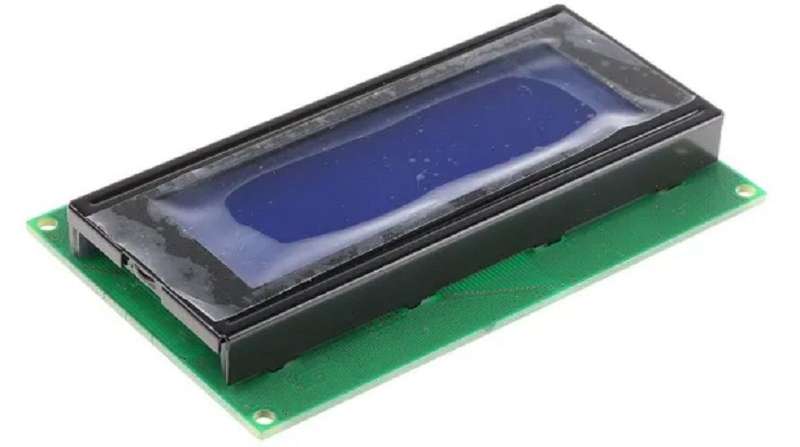

Alphanumeric LCD, 20 x 4, White on Blue, 5V, Parallel, English, Japanese,TransmissiveProduct OverviewThe MC42005A6W-BNMLW-V2 from Midas is a chip on board LCD alphanumeric module.The overall size of module is 98mm x 60mm x 14mm (W x H x D), character size is2.95mm x 4.75mm (W x H), character pitch is 0.6mm x 0.6mm (W x H).Typical input voltage is 5VSupply current is 1.5mA at Vdd = 3V20 character number per line & 4 character lineCharacter height is 5mmBlue transmissive STNLED white backlight6 "o" clock viewing directionSPLC780D controllerOperating temperature range from -20°C to 70°CDisplay duty 1/16, Driving bias 1/5White LED backlightPreferred view angle - 6 o'clock-20 to +70°C wide operating temperature range16 way through hole SIL (top right) connection, 2.54mm pitchApplicationsImaging, Video & VisionProduct InformationCharacter Count x Line: 20 x 4Display Appearance: White on BlueLogic Voltage: 5VInterface Type: ParallelFont Set: English, JapaneseDisplay Mode: TransmissiveCharacter Size: 4.75mmLCD Display Type: BSTNModule Size: 98mm x 60mmOperating Temperature Min: -20°COperating Temperature Max: 70°CDisplay Construction: COBBacklighting Colour: White
